2-component epoxy resin adhesive

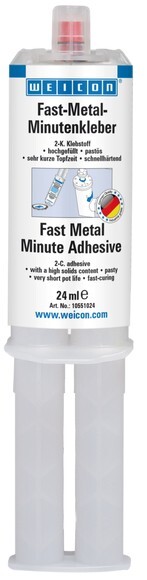

24 ml double syringe Weicon Fast-Metal Minute AdhesiveItem-no.: 1123239Supplier number: 10007785EAN: 4024596001445
PU (Packaging): 12 PieceQuantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
WEICON Fast-Metal Minute Adhesive is ideal for repairs and bondings with larger bonding gaps or bigger tolerances. Its gap-filling properties make it suitable for rough and poorly fitting surfaces as well as for filling in cracks, cavities and unlevelled surfaces. WEICON Fast-Metal Minute Adhesive can be used on numerous materials such as metal, plastic, fibre-reinforced materials, ceramics, glass, stone and wood.
Attributes
Aluminium sandblasted
19 N/mm²
Base
Epoxy resin, highly filled
Bending strength |DIN EN ISO 178
58.0 MPa
Colour
grey
Compressive strength|DIN EN ISO 604
10.0 MPa
Consistency
pasty, gap-filling
Construction material class|DIN 4102
B2
Curing temperature
+6 °C - +40 °C
Density of the mixture
1,8 g/cm³
Dielectric strength|DIN EN 60243-1 (20°C)
17 kV/mm
E-modulus (tensile)|DIN EN ISO 527-2
4.000 - 4.500 MPa
End hardness|(100 % of strength)
24 Hours
Gap bridging up to max.
4 mm
Hardness (Shore D)|DIN ISO 7619
70
Manual strength|(35 % of strength)
40 Min.
Mechanically loadable after|(50 % of strength)
2 Hours
Mixing ratio by weight
1:1
PVC-hard roughened
11.0 N/mm²
Processing temperature
+10 °C to +30 °C °C
Sales bundle
Cartridge
Shrinkage
0,3 %
Steel 1.0338 sandblasted
20.0 N/mm²
Temperature conductivity
0.286 mm²/s
Temperature resistance
-50 °C to +145 °C
Tensile strength|DIN EN ISO 527-2
24.0 MPa
Thermal capacity|DIN EN ISO 22007-4
0.904 J/(g·K)
Thermal conductivity|DIN EN ISO 22007-4
0.51 W/m·K
Through resistance|DIN EN 62631-3-1
4,57·10¹² Ω·m
