2-component construction adhesive

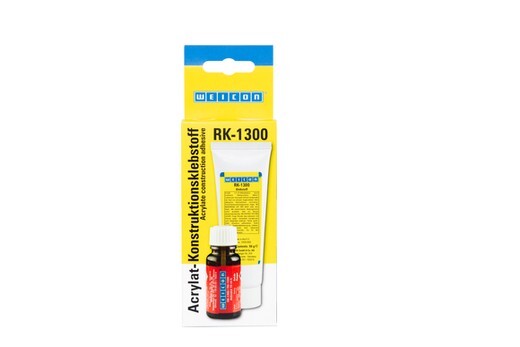

50 g tube, 10 g bottle Weicon RK-1300 incl. activatorItem-no.: 1123250Supplier number: 10000118EAN: 4024596000424
PU (Packaging): 12 STKQuantity:
1 STKPackable
Item available in 4 variants:
Description
The structural acrylic adhesive WEICON RK-1300 has high impact, peel and shear strength. The system consists of one adhesive and one activator, which are used in the “no mix” procedure. This makes processing easier by eliminating mixing procedures. The product is particularly suitable for bonding large surfaces of many different materials such as metals, ferrites and rigid plastics. WEICON RK-1300 can be used in mechanical and apparatus engineering, vehicle construction, tool and mould making, the building and furniture industry, and in many other industrial areas.
Attributes
ABS
6 N/mm²
Aluminium sandblasted
20 N/mm²
Base
Methyl methacrylate
CFRP
24.0 N/mm²
Colour
beige, opaque
Consistency
pasty
Construction material class|DIN 4102
B2
Curing temperature
at least +18 °C
Density of the mixture
1,2 g/cm³
End hardness|(100 % of strength)
24 Hours
GRP
16.0 N/mm²
Gap bridging up to max.
0.4 mm
Manual strength|(35 % of strength)
6 Min.
Mechanically loadable after|(50 % of strength)
9 Min.
PC (polycarbonate)
10 N/mm²
PMMA
9 N/mm²
PVC-hard roughened
7.0 N/mm²
Polyamide 6.6
2 N/mm²
Processing temperature
+10 °C to +40 °C °C
Production method
No-Mix
Sales bundle
Tube
Stainless steel V2A sandblasted
25.0 N/mm²
Steel 1.0338 sandblasted
25.0 N/mm²
Temperature resistance
-50 °C to +130 °C briefly up to +180 °C
