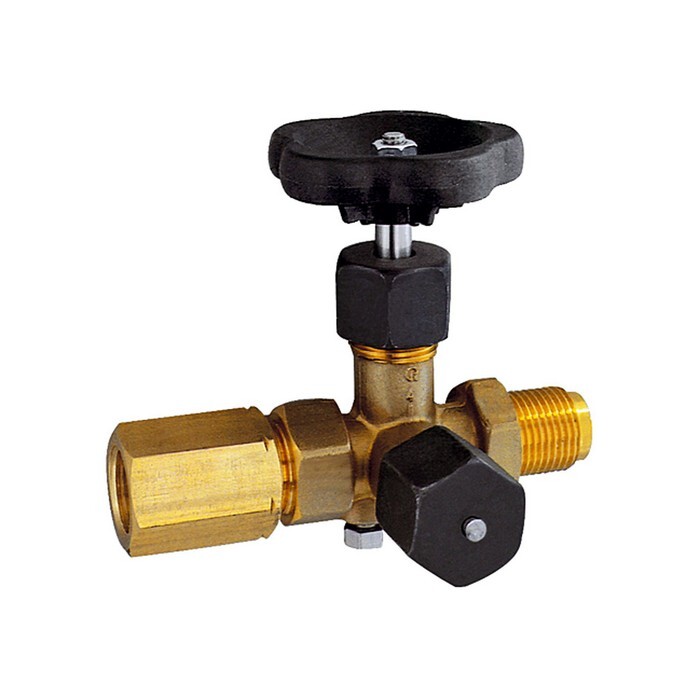

Absperrhahn für Manometer
IG 1/2", 250 bar, SW27 Zapfen/Spannmuffe/Prüfzapfen, MessingItem-no.: 1241365Supplier number: 9115/MEAN: 4047322123341
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
Blocking valve pressure gauge, Taps - tension sleeve, DIN 16271, A shape, made of brass, G 1/2, PN 250 bar, AF 27, max. 120 °C. Used as shut-off or reducing elements for pressure gauges when measuring liquids, gases or steam.
Attributes
Clamping sleeve
Steel
Handwheel
Plastic
Housing
brass
Operating temperature max.
120 °C
Operating temperature min.
-10 °C
PN
250 bar
Riegler article number
102667
SW
27 mm
Screw thread
G 1/2
Sealing material
PTFE
Union nut
Steel
Valve cone
Stainless steel
Valve spindle
Stainless steel
Version
Spigot / clamping sleeve, with test spigot M20x1.5
