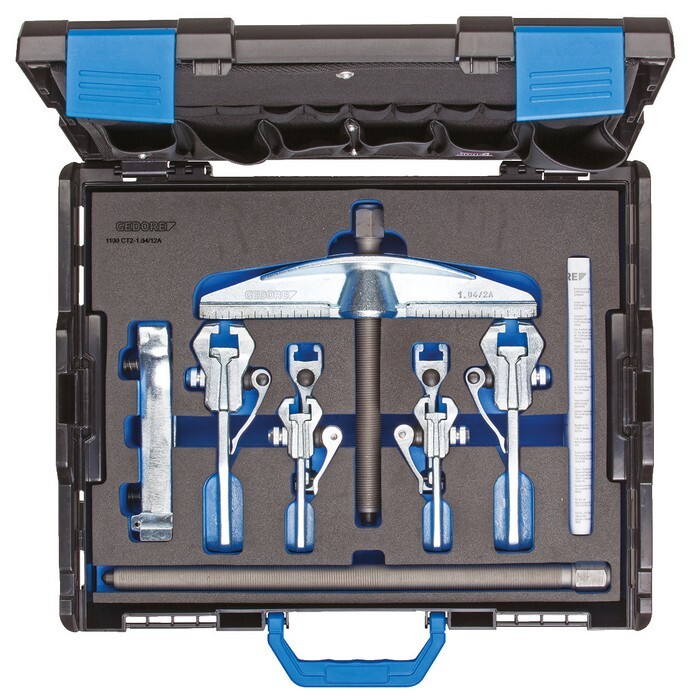

Puller assortment inside/outside
2-arm, in L-Boxx 136 Gedore 1100-1.04/12AItem-no.: 1186631Supplier number: 1100-1.04/12AEAN: 4010886945230
Quantity:
1 SA
=
1 PackagingPackable
Description
Max. capacity 3 and 5 t, For clamping depths up to Ø 200 mm external, Ø 70-260 mm internal, and clamping reach up to 300 mm, With 3 of 4 spindles the spindle tip can be turned (ball/tip), Quick-release pulling legs with intregral T-profile for a better transmission of force, 2 rigid extensions each 100 and 150 mm with leg brake for quick adjustment of the legs, With Check-Tool insert for quick check of tool completeness, No. 1100 CT2-1.04/12A for retrofitting existing L-BOXX®s 136, As tools are fully sunk in the foam, the equipped insert can be stacked, Insert can be used in drawers with minimum dimensions 400 x 310 x 90 mm
Attributes
Clamping depth usable b
300 mm
Clamping range external puller (max.)
200 mm
Clamping range internal puller a2 (max.)
260 mm
Clamping range internal puller a2 (min.)
70 mm
Nominal height
151 mm
Nominal length
357 mm
Nominal width
442 mm
Tensile force (max.)
3 and 5 t
Total height
151 mm
Total length
357 mm
Total width
442 mm
