Description

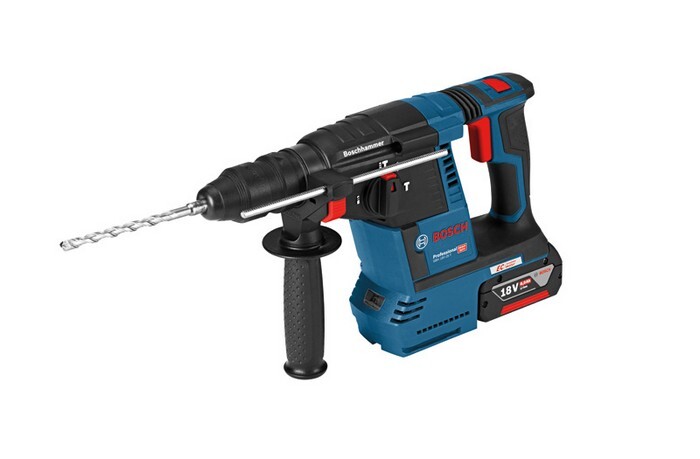

Cordless Rotary Hammer with SDS plus GBH 18V-26F, The GBH 18V-26 F Professional with quick-change chuck is the universal performer in Bosch’s SDS plus cordless rotary hammer category, making it perfect for daily use. An optional GDE 18V-16 Professional dust extraction unit integrates with the hammer, providing a self-contained HEPA dust solution for maximum mobility. The rotary hammer also features KickBack Control and Electronic Precision Control (EPC) for better tool handling and increased user protection. Its powerful motor delivers 2.6 J of impact energy for fast material removal rates. This tool is intended for drilling and chiselling in concrete, masonry, wood, and metal. It is compatible with various dust attachments as well as all Bosch Professional 18 V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance. The GBH 18V-26 F Professional also includes various additional features such as Constant Speed, a Brushless Motor, Electronic Motor Protection (EMP), as well as an LED light, Rotation Control Clutch, Variable Speed, Vario Lock, and Vibration Control. Auxiliary handle (2 602 025 141), Depth stop 210 mm (1 613 001 010), Quick charger GAL 1880 CV (1 600 A00 B8G), Machine cloth, Quick change chuck 13 mm (2 608 572 212), SDS plus quick-change chuck (2 608 572 213), 2 x battery GBA 18V 5.0Ah (1 600 A00 2U5), L-BOXX 136 (1 600 A01 2G0), 1/1 L-BOXX inlay for tool (1 600 A00 HP1)
Attributes
Battery capacity
5.0 Ah
Battery voltage
18.0 V
Drill-Ø concrete with hammer drill
4 - 26 mm
Drill-Ø concrete with hammer drill, from
4 mm
Drill-Ø concrete with hammer drill, up to
26 mm
Impact energy (according to EPTA 05/2016)
2.6 J
Impact rate at rated speed
0 - 4350 bpm
Max. drill-Ø wood
30 mm
Max. drilling diameter in metal
13 mm
Measurement uncertainty k (chiseling in concrete)
1.5 m/s²
Measurement uncertainty k (hammer drilling in concrete)
1.5 m/s²
Nenndrehzahl, bis zu
980 min-1
Nenndrehzahl, von
0 min-1
Optimum area of application Concrete with hammer drills
8 - 16 mm
Rated speed
0 - 980 min-1
Tool holder
SDS plus
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 445 x 155 mm
Vibration emission value ah [Chiselling in concrete]
9.6 m/s²
Vibration emission value ah [Hammer drilling in concrete]
15.2 m/s²
Weight including battery
3.6 kg
Werkzeugabmessungen (Länge)
364 mm
