Description

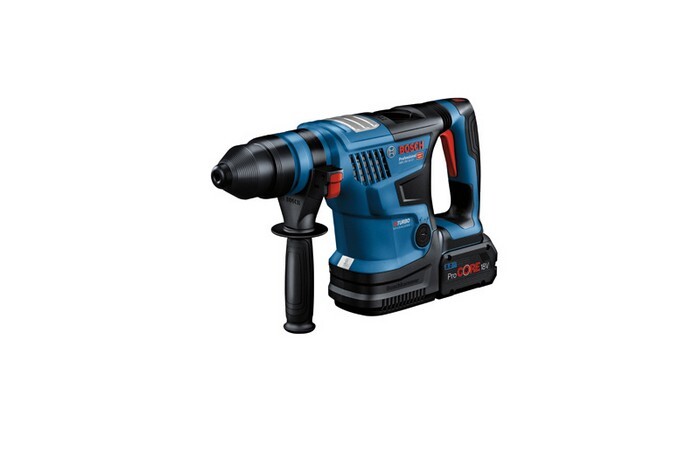

Cordless Rotary Hammer BITURBO with SDS plus GBH 18V-34 CF, Perfect for demanding jobs in concrete – Bosch´s GBH 18V-34 CF Professional is the most powerful cordless SDS plus hammer, ideal for tough applications. This powerhouse´s BITURBO Brushless technology with ProCORE18V battery delivers an outstanding performance of 5.8 J, making it the most powerful cordless SDS plus hammer in its range. Perfect tool control is ensured by its soft start function for precise chiselling during use and three different working modes (Auto, Favorite, Soft) that provide the right setting for every job. The 18V-34 CF is also the smartest SDS plus hammer, displaying real-time tool status via its user interface and allowing for individual adjustments through Bluetooth connectivity to the Bosch Toolbox app. This tool is ideal for hammer drilling and chiselling in concrete, brick, and stone. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). For maximum power, use ProCORE18V ≥ 8.0 Ah. Also compatible with AMPShare, the multi-brand battery alliance. 2 x battery ProCORE18V 5.5Ah (1 600 A02 149), Quick charger GAL 1880 CV (1 600 A00 B8G), 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 3WF), Auxiliary handle (2 608 000 703), Depth stop (spare part number 1 613 001 009), SDS plus quick-change chuck (2 608 000 704), Quick-change chuck 1.5 - 13 mm (2 608 000 710), Machine cloth (spare part number: 1 619 200 413), Grease tube (spare part number 1 615 430 010), Carrying case (spare part number 1 605 438 1G2)
Attributes
Battery capacity
5.5 Ah
Battery voltage
18.0 V
Drill-Ø concrete with hammer drill
8 - 32 mm
Drill-Ø concrete with hammer drill, from
8 mm
Drill-Ø concrete with hammer drill, up to
32 mm
Gewicht exkl. Akku
4.9 kg
Impact energy (according to EPTA 05/2016)
5.8 J
Impact rate at rated speed
0 - 2900 bpm
Max. drill-Ø wood
40 mm
Max. drilling diameter in metal
13 mm
Measurement uncertainty k (chiseling in concrete)
1.5 m/s²
Measurement uncertainty k (hammer drilling in concrete)
1.5 m/s²
Nenndrehzahl, bis zu
500 min-1
Nenndrehzahl, von
0 min-1
Optimum area of application Concrete with hammer drills
12 - 30 mm
Rated speed
0 - 500 min-1
Tool holder
SDS plus
Verpackungsabmessungen (Breite x Länge x Höhe)
408 x 619 x 147 mm
Vibration emission value ah [Chiselling in concrete]
11.7 m/s²
Vibration emission value ah [Hammer drilling in concrete]
10.9 m/s²
Werkzeugabmessungen (Länge)
430 mm
