Description

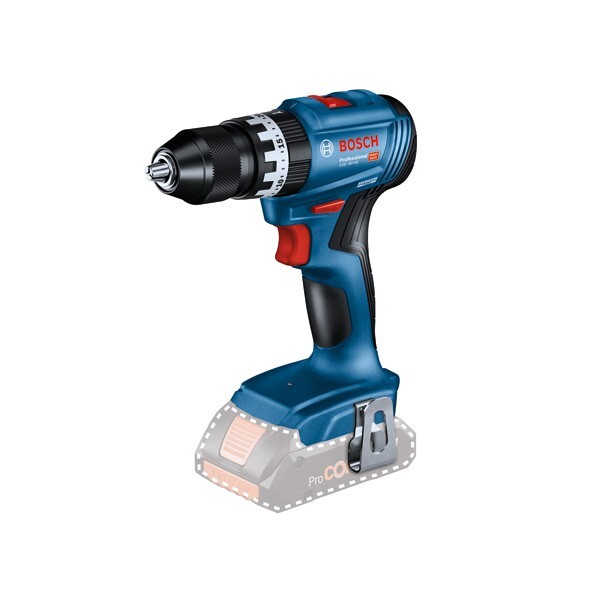

Cordless Impact Drill/Drivers GSB 18V-45, The GSB 18V-45 has a brushless motor for a long lifetime and power for all standard applications. It reaches a maximum torque (hard) of 45 Nm and rotational speed of 1,900 rpm. The robust impact drill driver has a 13-mm metal chuck to ensure excellent torque transfer on the job. Due to its lightweight and compact design with only 174-mm head length, it is ready for use anywhere, while the included belt clip makes it effortless to carry. This compact and powerful performer drives screws into wood up to 10 mm and drills in wood of up to 35 mm, as well as metal or masonry up to 10 mm. It’s made for tradesmen and artisans who demand a higher performance on challenging jobs, and for working in hard-to-reach areas. Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare. Cardboard box
Attributes
Battery type
Lithium-ion
Battery voltage
18.0 V
Drehmoment (hart)
45 Nm
Drehmoment (weich)
21 Nm
Drill chuck clamping range, min./max.
1.5 / 13 mm
Drill-Ø masonry, max.
10 mm
Drill-Ø steel, max.
10 mm
Gewicht exkl. Akku
1 kg
Idle speed (1st gear / 2nd gear)
0 - 500 / 0 - 1900 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
500 min-1
Idle speed, 2nd gear, from
0 min-1
Idle speed, 2nd gear, to
1900 min-1
Impact rate, max.
27000 bpm
Measurement uncertainty k (drilling in metal)
1.5 m/s²
Measurement uncertainty k (impact bores in masonry)
1.5 m/s²
Screw Ø, max.
8 mm
Torque (soft/hard/max.)
21/45/- Nm
Torque levels (additional)
2
Torque levels (standard)
20
Torque leves
20+2
Vibration emission value ah [Drilling in metal]
2.5 m/s²
Vibration emission value ah [percussion drilling in masonry]
12.2 m/s²
