Description

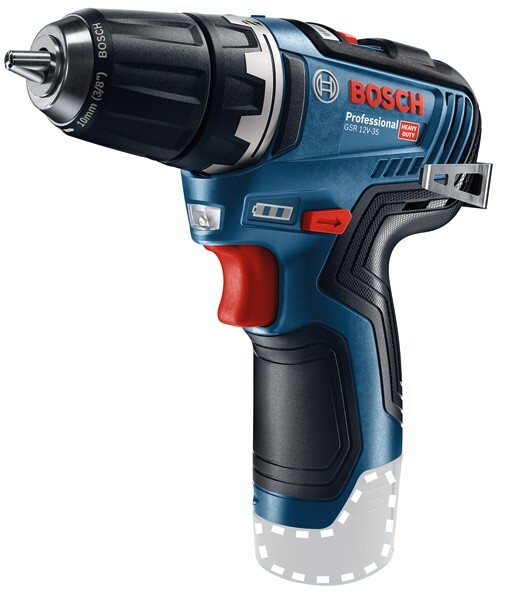

Cordless Drill/Driver GSR 12V-35, The GSR 12V-35 Professional cordless drill driver offers the best performance and compactness in the 12V category. The drill driver´s compact design enables optimum handling, especially when working overhead or in tight spaces. Its 35 Nm hard torque and 0-1,750 rpm, as well as its short head length of 154 mm, offer the best performance-to-size ratio, making it the smallest yet most powerful 12V drill driver. Its brushless motor along with Electronic Motor Protection prevents overload and ensures a longer tool lifetime. . This drill driver is intended for drilling in wood with a maximum diameter of 32 mm, in steel up to 10 mm, and for screw diameters of up to 8 mm. It is compatible with all Bosch Professional 12V batteries and chargers (Professional 12V System). The GSR 12V-35 Professional also features 2-gear, Autolock, belt clip/hook, bit holder, charge level indicator, Electronic Cell Protection, LED light, Li-ion, right-left rotation, and speed selection. Quick charger GAL 12V-40 Professional (1 600 A01 9R3), 2 x battery GBA 12V 3.0Ah (1 600 A00 X79), L-BOXX 102 (1 600 A01 2FZ)
Attributes
Battery type
Lithium-ion
Battery voltage
12.0 V
Bohr-Ø Holz, max.
32 mm
Drehmoment (hart)
35 Nm
Drehmoment (weich)
20 Nm
Drill chuck clamping range, min./max.
10 mm
Drill-Ø steel, max.
10 mm
Gewicht exkl. Akku
0.75 kg
Idle speed (1st gear / 2nd gear)
0 - 460 / 0 - 1750 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
460 min-1
Idle speed, 2nd gear, from
0 min-1
Idle speed, 2nd gear, to
1750 min-1
Measurement uncertainty k (drilling in metal)
1.5 m/s²
Measurement uncertainty k (screwing)
1.5 m/s²
Screw Ø, max.
8 mm
Torque (soft/hard/max.)
20/35/- Nm
Torque levels (additional)
1
Torque levels (standard)
20
Torque leves
20+1
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 444 x 122 mm
Vibration emission value ah [Drilling in metal]
2.5 m/s²
Vibration emission value ah [Screws]
2.5 m/s²
Weight including battery
1.2 kg
