Description

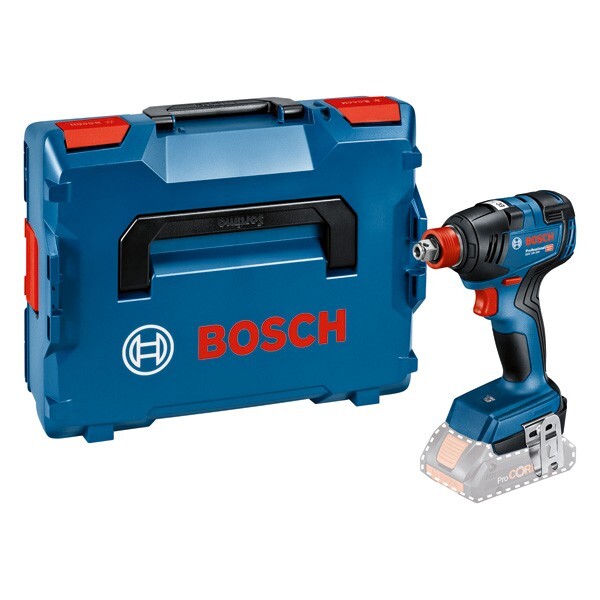

Cordless Impact Driver/Wrench GDX 18V-200, The GDX 18V-200 Professional combines brushless power, a compact design and a 2-in-1 tool holder for highest flexibility. The unique 2-in-1 tool holder with ¼” internal hex and ½” square drive makes it versatile and ideal for the widest range of applications. It comes with a brushless motor, which features high performance of 200 Nm tightening torque, 350 Nm breakaway torque, excellent battery runtime and a long tool lifespan. To have a better control over speed and torque the GDX 18V-200 is equipped with a variable speed trigger. The GDX 18V-200 Professional is the ideal choice for tightening and removing screws (M 6 – M 16), when working in metal sheet, metal or wood. It is also compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance. It also features Electronic Cell Protection (ECP), a LED light and a belt clip. 1/2 L-BOXX inlay for tool and charger (1 600 A01 CU5), 1/2 L-BOXX inlay for accessories (1 600 A00 2WC), L-BOXX 136 (1 600 A01 2G0)
Attributes
Battery voltage
18.0 V
Gewicht exkl. Akku
1.2 kg
Idle speed
0-3400 U/min
Idle speed (1st stage)
0-3400 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
3400 min-1
Impact rate
0-4200 bpm
Impact rate, from
0 bpm
Impact rate, up to
4200 bpm
Leerlaufdrehzahl, bis zu
3400 U/min
Leerlaufdrehzahl, von
0 U/min
Maximum breaking torque
350 Nm
Measurement uncertainty k (tightening screws and nuts of maximum permissible size)
1.5 m/s²
Screw Ø
M 6 - M 16
Tool holder
1/4'' hexagon uni
Torque, max.
200 Nm
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 446 x 155 mm
Vibration emission value ah [Tightening of bolts and nuts of maximum permissible size]
10.0 m/s²
Werkzeugabmessungen (Länge)
147 mm
