Description

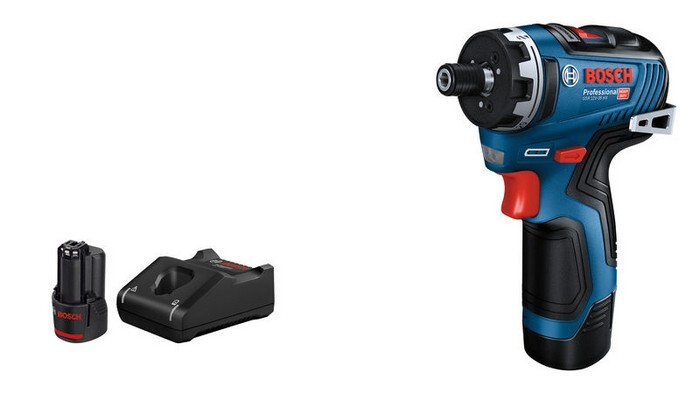

Cordless Screwdriver GSR 12V-35 HX, The perfect balance between compactness, productivity and performance in the 12V class: the brushless GSR 12V-35 HX Professional cordless screwdriver. This highly compact cordless screwdriver easily reaches into tight and narrow spaces. With a rotation speed of 1,750 rpm, it is the fastest 2-gear 12V tool of its kind, enabling smooth and efficient working with fast results. Exchanging bits is easy thanks to the convenient lockable 1/4" bit interface. The GSR 12V-35 HX Professional is suitable for screwdriving into a wide range of materials. It is compatible with all Bosch Professional 12V and 10.8V batteries and chargers. 2 x battery GBA 12V 3.0Ah (1 600 A00 X79), Quick charger GAL 12V-40 Professional (1 600 A01 9R3), 1/2 L-BOXX inlay for tool and charger (1 600 A00 2V2), Cardboard box, 1 x belt clip, 1 x bit holder
Attributes
Battery capacity
3.0 Ah
Battery type
Lithium-ion
Battery voltage
12.0 V
Bohr-Ø Holz, max.
32 mm
Clamping range, max.
10.0 mm
Clamping range, min.
0.8 mm
Drehmoment (hart)
35 Nm
Drehmoment (weich)
20 Nm
Drill chuck clamping range, min./max.
0.8 / 10 mm
Drill chuck, design
1/4" with hexagon socket (ISK)
Drill-Ø steel, max.
10 mm
Gewicht exkl. Akku
0.57 kg
Idle speed (1st gear / 2nd gear)
0 - 460 / 0 - 1750 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
460 min-1
Idle speed, 2nd gear, from
0 min-1
Idle speed, 2nd gear, to
1750 min-1
Measurement uncertainty k (drilling in metal)
0.0 m/s²
Measurement uncertainty k (screwing)
0.0 m/s²
Screw Ø, max.
8 mm
Torque (soft/hard/max.)
20/35/- Nm
Torque levels (additional)
1
Torque levels (standard)
20
Torque leves
20+1
Verpackungsabmessungen (Breite x Länge x Höhe)
230 x 336 x 104 mm
Vibration emission value ah [Drilling in metal]
1.5 m/s²
Vibration emission value ah [Screws]
1.5 m/s²
