Description

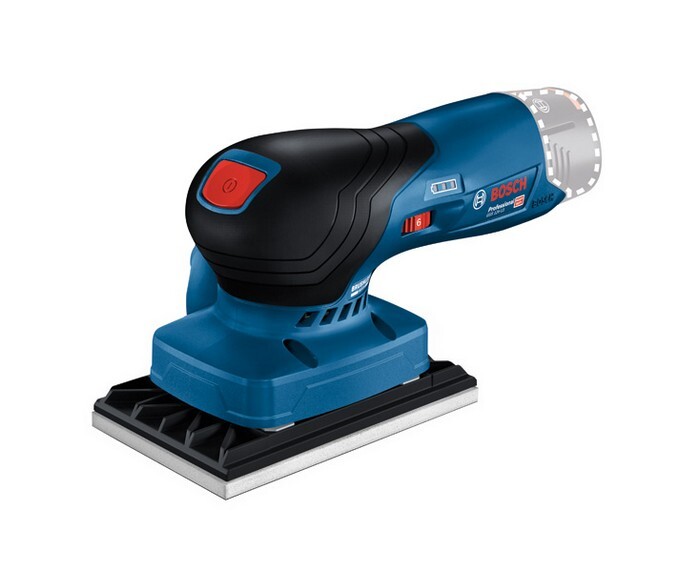

Cordless Orbital Sander GSS 12V-13, The GSS 12V-13 Professional is the ideal companion for users who are always-on-the-go. It offers an excellent tool balance with the centre of gravity close to the workpiece and the superior ergonomics of the palm rest and grip. Its lean 12V design provides the necessary compactness for all hard-to-reach areas. It is easy to handle thanks to its intuitive operating concept and the interchangeable sanding plate system. The GSS 12V-13 Professional is ideal for basic and in-between sanding, lacquer removal, and finishing surfaces. It can be used on wood, veneer, lacquer, and filler, as well as mineral and acrylic. It is compatible with the Bosch Click & Clean dust extraction system and the Professional 12V system. It features speed selection, a battery status indicator, a dust bag, and interchangeable sanding plates in three different sizes fitted with a hook-and-loop system for fastening sanding sheets. 1 x sanding sheet C470, Best for Wood + Paint, 120 (available separately as set of 10: 2 608 607 232), Dust bag (2 608 000 715)
Attributes
Battery voltage
12.0 V
Delta sanding plate with hook and loop fastener, length
150 mm
Delta sanding sheet with hook and loop fastener, width
100 mm
Gewicht exkl. Akku
0.8 kg
Idle speed
6000 - 10000 U/min
Leerlaufdrehzahl, bis zu
10000 U/min
Leerlaufdrehzahl, von
6000 U/min
Measurement uncertainty k (sheet material)
1.5 m/s²
Sanding plate with Velcro fastener and clamp, length
100 mm
Sanding plate with Velcro fastener and clamp, width
110 mm
Sanding plate, length
130 mm
Sanding plate, width
80 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
163 x 285 x 138 mm
Vibration circle diameter
1.6 mm
Vibration emission value ah [panel material grinding]
3.6 m/s²
Vibration level at idle
12000 - 20000 min-1
Vibration rate at idle, from
12000 min-1
Vibration rate at idle, up to
20000 min-1
