Hazet

Blow-out gun for compressed air

Coupling plug 330l/min Hazet 9040-4
Item-no.: 1330861Supplier number: 9040-4EAN: 4000896176236

Quantity: ​​ 1 STKPackable
Promotional item
Short-term Sourcing

Description

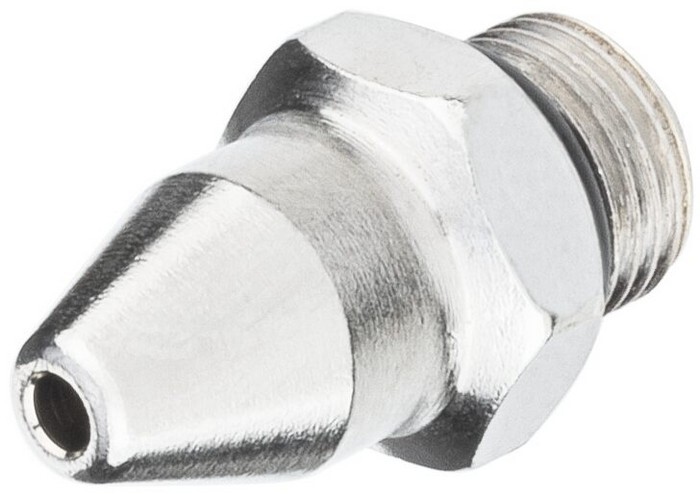

Application: - Fast removal of chips or other foreign objects · Choice of air supply at tool head or handle · Exchangeable nozzles:· Short nozzle for areas with restricted access · Long nozzle (112 mm) with safety nozzle tip (scratch protection) · Maximum pressure: 10 bar · Pressure regulator · To be used on machinery, in workshops, for wood work, hobby workshops · Aluminium housing · Thread nozzles: 1⁄8″ PF 28 - (9.728 mm outside Ø / 0.907 mm pitch) · Air connection inlet: Inside thread 12.91 mm (1/4″) · Coupler plug: Nominal size 7.2 (included) · Working pressure (bar): 6.3 · Anti-slip, cold insulated handle · Net weight: 0.2 kg · Sound pressure level: 86 dB(A) Lp A · Air requirement: 330 l/min (5.5 l/sec).
Piktogramm
Piktogramm
Attributes
Air connection inlet
Internal thread 12.91 mm (1/4″)
Air requirement
5.5 l/sec
Coupling plug
Nominal diameter 7.2 (included)
Hazardous substance labelling
false
Net weight
205 g
Operating pressure
6.3 bar
Series
auya_9040
Sound pressure level (at operating pressure)
86 dB(A) Lp A
