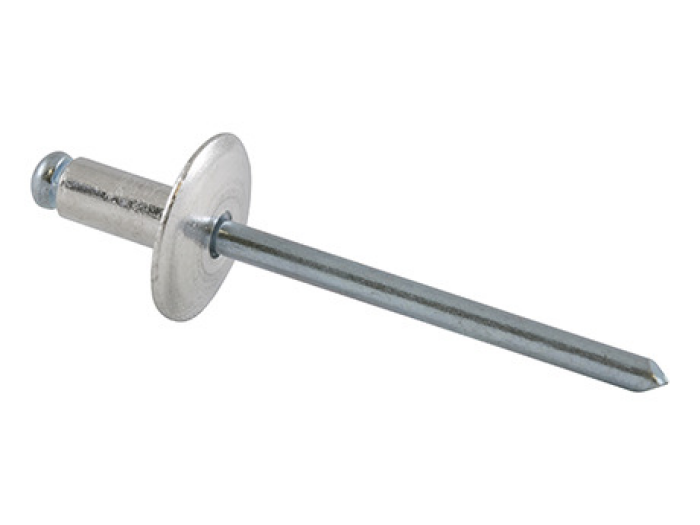

Blind rivet, aluminium/steel GK

5x14 mm / K 14, clamping range 7.5-10.0 VVG, ALFO

Item-no.: 1063221Supplier number: 10760050140-0-1EAN: 4016111286000

PU (Packaging): 500 STKQuantity:  500 STKPackable

VVG-Blindniet ALFO Alu / Stahl Großkopf 5 x 14 K 14

Clamping range from

7,5 mm

Clamping range to

10 mm

Head diameter

14 mm

Head height

1,5 mm

Head shape

Large head ø14.0

Hole diameter from

5,1 mm

Material pin

Steel

Material sleeve / rivet body

Aluminium

Pin diameter

2,7 mm

Shaft diameter

5 mm

Shaft length

14 mm

Version

open
