Hazet

Bodywork gun compressed air

L=251 mm Hazet 9042P-4
Item-no.: 1341022Supplier number: 9042P-4EAN: 4000896209613

Quantity: ​​ 1 PiecePackable
Promotional item
Short-term Sourcing

Description

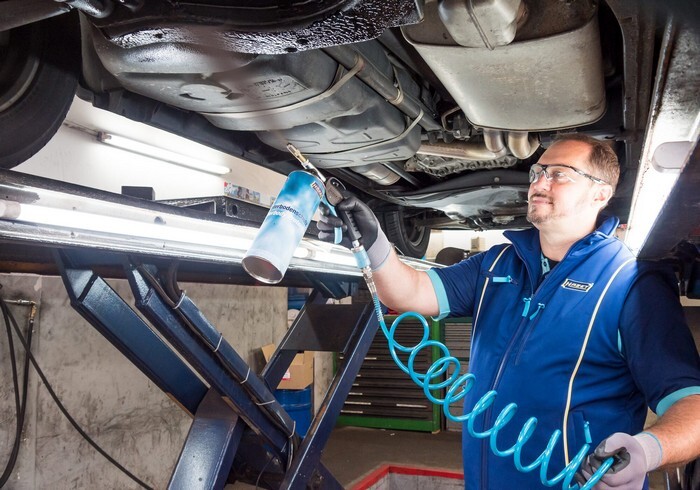

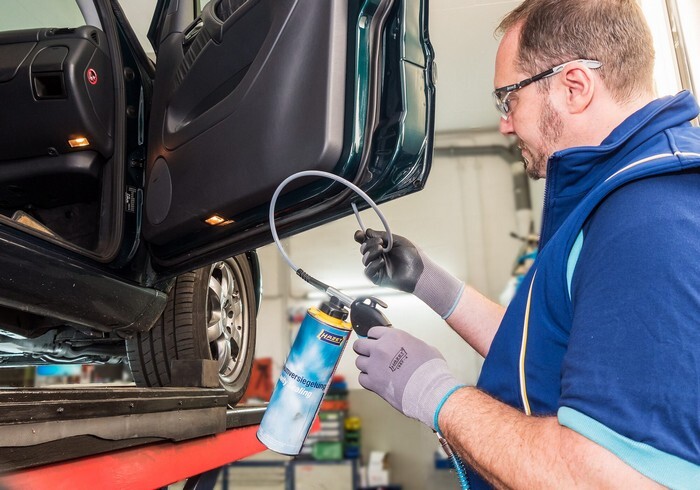

Application: - Maintenance and cleaning of passenger cars and other vehicles - Suitable for aqueous and oily liquids · Easy replacement of nozzle and hose · Including metal suction pipe · Fluid throughflow can be easily regulated by removal · Including nozzle and cavity tube · Air requirement with nozzle 380 l/min at 8 bar · Air requirement with nozzle 255 l/min at 6 bar · Air requirement with cavity tube: 180 l/min at 8 bar · Air requirement with cavity tube: 165 l/min at 6 bar · Thread: BSP / NPT · Incl. cavity tube: 920 mm usable length · Handle, trigger and valve made of acetal plastic · Seals and O-rings made of nitrile · Nozzles made of steel / plastic · Spring made of hardened spring steel · Net weight with nozzle 350 gram · Net weight with cavity tube 338 gram · Cartridge coupler thread: M 41 x 3 · Air connection inlet: Inside thread 12.91 mm (1/4″) · Coupler plug: Nominal size 7.2 (included) · Working pressure (bar): 6 · Max. working pressure [bar]: 16 bar · Dimensions / length: 251 mm · Temperature range: -10°C – 80°C.
Piktogramm
Attributes
Air connection inlet
Internal thread 12.91 mm (1/4″)
Coupling plug
Nominal diameter 7.2 (included)
Dimensions/length
251 mm
Hazardous substance labelling
false
Length (battery)
251 mm
Operating pressure
6 bar
Series
auya_9042
