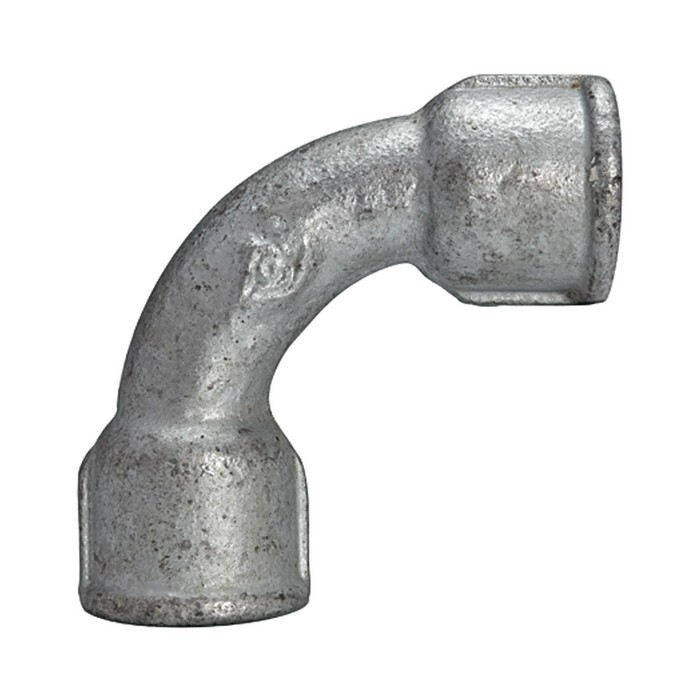

Elbow 90° long no.2 galvanised

I/I Rp 2.1/2" ISO/EN G1
Item-no.: 1108245EAN: 4047322405836

PU (Carton): 4 STKPU (Packaging): 4 STKQuantity: ​​ 1 STKPackable
Short-term Sourcing

Description
Elbow 2, Long, 90°, IT/IT, Rp 2 1/2, Operating temp. -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242Acc. to DIN EN 10242 (formerly DIN 2950)The classic - and the most popular - screw fitting series for pipe construction. These fittings are characterized by their high mechanical strength and surface quality to DIN 2444. They are completely coated with a layer of pure zinc and are therefore suitable for drinking water; they are also protected against rust. These malleable iron fittings are used in machine construction, exterior lines, cold water lines and heating lines. Working minimal temperature = -20 °C, 25 bar. Working pressure for temperature range from -20 °C to 120 °C: 25 bar. Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Attributes
Material
Black malleable cast iron B350-10 Design Symbol A
Screw thread
Rp 2 1/2
Surface
Hot-dip galvanised
Temperature range max.
300 °C
Temperature range min.
-20 °C
Thread standard
according to ISO 7-1
