Description

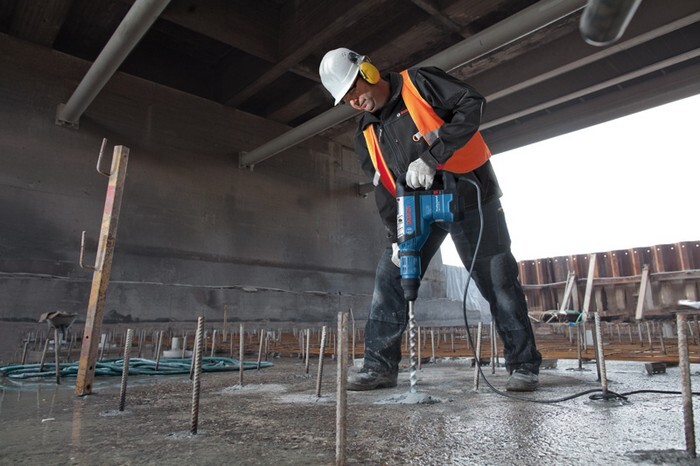

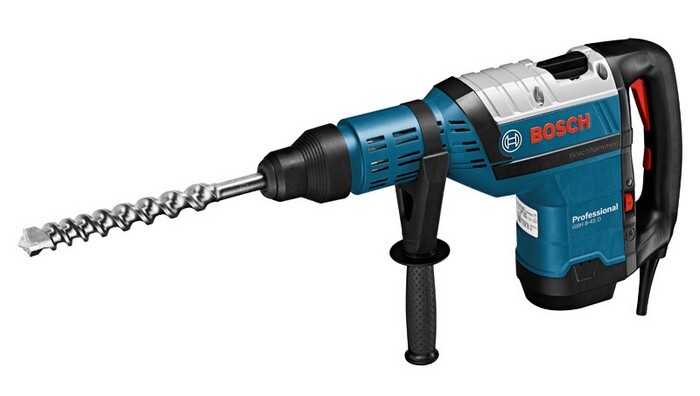

Rotary Hammer with SDS max GBH 8-45 D, The GBH 8-45 D Professional is an all-round performer in the SDS max corded rotary hammer category due to its universal capabilities. Its perfect power-to-weight ratio enables it to easily perform many SDS max tasks. This rotary hammer also features robust metal components for durability. Its strong motor enables the delivery of 12.5 J of impact energy for a fast drilling progress and high material removal rate. This tool is intended for drilling up to 45 mm in diameter and medium chiselling work in concrete and stone. It is compatible with various dust attachments. The GBH 8-45 D Professional also includes features such as Constant Speed, Restart Protection, Rotation Control Clutch, and Speed Selection. Auxiliary handle (spare part number 1 612 025 004), Grease tube (spare part number 1 615 430 010), Machine cloth, Carrying case (spare part number 1 615 438 51A)
Attributes
Drill-Ø concrete with hammer drill
12 - 45 mm
Drill-Ø concrete with hollow core bit
125 mm
Drill-Ø concrete, break through-drill, up to
80 - 80 mm
Impact energy (according to EPTA 05/2016)
12.5 J
Impact rate at rated speed
1475 - 2700 bpm
Max. drill-Ø masonry, core bits
45 mm
Max. drill-Ø wood
80 mm
Maximum diameter in concrete with breakthrough drills
80 mm
Maximum diameter in concrete with hollow core bits
125 mm
Minimum diameter in concrete with breakthrough drills
80 mm
Minimum diameter in concrete with hollow core bits
125 mm
Nenndrehzahl, bis zu
300 min-1
Nenndrehzahl, von
165 min-1
Nominal input power
1500 W
Opt. application range concrete, hammer drill
20 - 40 mm
Rated speed
165 - 300 min-1
Tool holder
SDS max
Verpackungsabmessungen (Breite x Länge x Höhe)
410 x 615 x 145 mm
Voltage, electrical
230 V
Weight
8.2 kg
Werkzeugabmessungen (Länge)
540 mm
