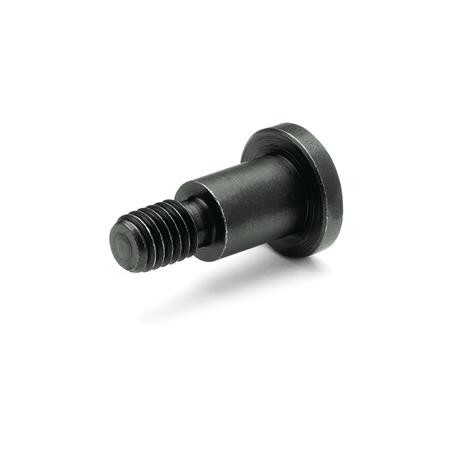

Collar screw with hexagon socket
GN 732.1-M10-12-12-STST - Steel
Item-no.: 1352693Supplier number: 732.1-M10-12-12-STEAN: 4045525431379
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 25 variants:
Price and stock visible after login
Description
The dimensions d2/ l1 of the cylinder head shoulder bolts GN 732.1 permit a use as bearing pin for swing bolts DIN 444, swing bolts GN 1524, swing nuts GN 444.2 and hubs with eccentrical cam GN 919.
Attributes
L2
13
Length l1
12
Material
ST - Steel
Mounting diameter d2
12
RoHS
Ja
Screw thread d1
M 10
Weight
0.028 kg
d3
19
l3
6
s
6
