Chrome-silver spray
400 ml spray can WeiconItem-no.: 1161950Supplier number: 10009426EAN: 4024596002008
PU (Packaging): 12 STKQuantity:
1 STKPackable
Description

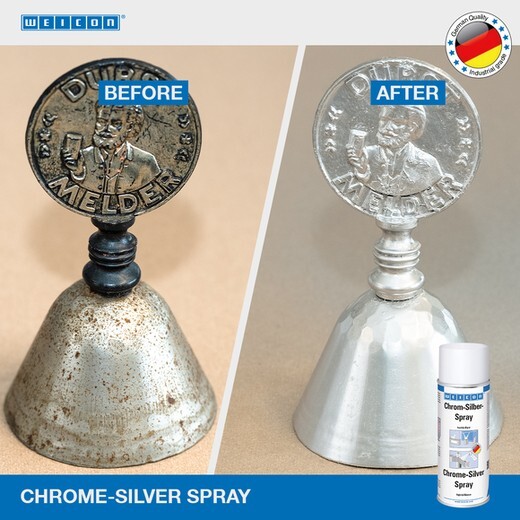

WEICON Chrome-Silver Spray is a high-brilliance surface coating. The special formulation and highest purity of the metal pigments create a high gloss finish. Chrome-Silver Spray can be used for prototypes and samples, mirror applications (e.g. reflectors), trade show and exhibition construction, appealing decorative work, and for the optical refinement of the most diverse materials.
Attributes
Abrasion resistant
No
Binding agent
Natural resin
Colour shade
aluminium, glossy
Construction material class|DIN 4102
B2
Consumption|at 1.5 cross pass
~ 2 m²
Density|(+20°C) DIN 51757
0,8 g/cm³
Double nozzle
No
Dust dry according to
10 Min.
Grating section|DIN 53151/ISO 2409
Cross-sectional characteristic GT 0 to GT 1
Layer thickness with 1.5 cross pass approx.
10 -20 μm
Mandrel bending test|DIN EN ISO 1519
No hairline cracking
Metal content in the dry film
~15 %
Pigment
platelet-shaped aluminium pigments
Pigment purity
approx. 99.5% Al
Processing temperature
+5 °C to +35 °C, optimum +18 °C to +35 °C °C
Recommended primer
Zinc spray
Sales bundle
Spray can
Silicone-free
ja
Temperature resistance
-50 °C to +400 °C
Top coat
not required
