Contact adhesive

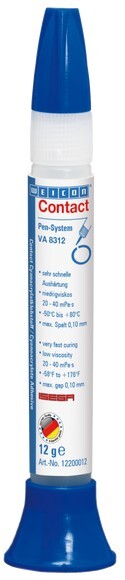

12 g pen, low viscosity Weicon VA 8312Item-no.: 1123140Supplier number: 10018863EAN: 4024596021344
PU (Packaging): 30 PieceQuantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
WEICON Contact VA 8312 is suitable for the bonding of various rubber materials, such as solid rubber or cellular rubber, plastics and EDPM elastomers. In combination with WEICON CA-Primer, VA 8312 can also be used for polyolefines (PE-polyethylene, PP-polypropylene). In combination with WEICON Contact Filler, VA 8312 is suitable for the instant bonding and filling of cracks, clefts, holes and uneven surfaces.
Attributes
Aluminium sandblasted
7-14 MPa
Base
Ethyl
Coefficient of thermal expansion
~ 80 x 10^-6 m/(m·K)
Colour after curing
colourless
Composition
Colourless, clear substance
Consistency
Liquid
Construction material class|DIN 4102
B2
Density|(+20 °C)
1,1 g/cm³
Dielectric strength|DIN EN 60455-3-8
~ 25 kV/mm
End hardness|(100 % of strength)
24 Hours
Gap bridging up to max.
0,1 mm
On rigid PVC untreated
40-70 Seconds
PC (polycarbonate)
6-13 MPa
Processing temperature
+15 °C to +40 °C °C
Relative humidity
40% - 70%
Sales bundle
Plastic bottle
Sandblasted on aluminium
50-70 Seconds
Silicone-free
ja
Steel 1.0338 sandblasted
20.0
Steel sandblasted | Substrate thickness 1.5 mm
10-20 MPa
Temperature resistance
-50°C to +80°C short term up to +100°C
Thermal conductivity|DIN EN ISO 22007-4
0.1 W/m·K
Through resistance|DIN IEC93
>10^15 Ω·cm
Viscosity|25 °C cone / plate
20 -40 mPa·s
