Description

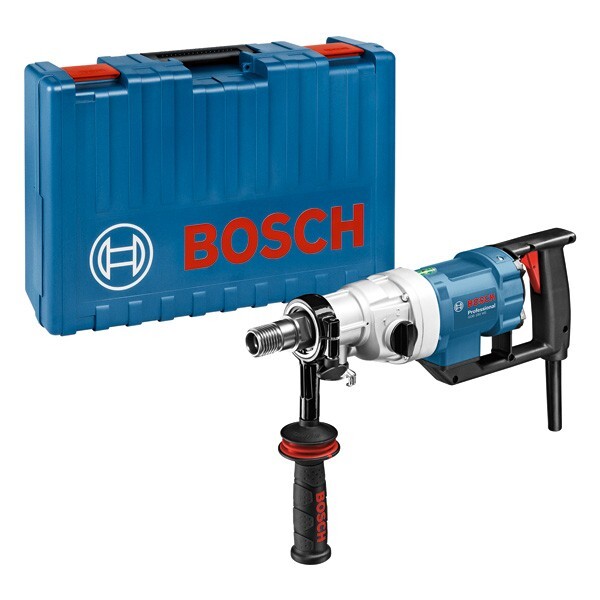

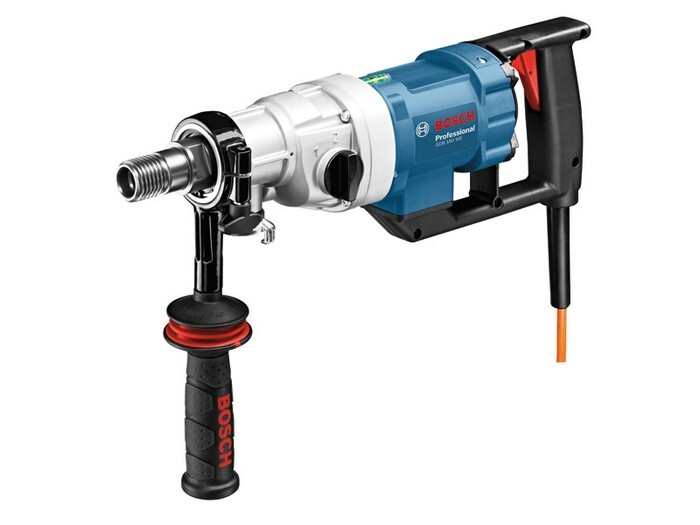

Diamond Drill GDB 180 WE, The GDB 180 WE Professional is a corded versatile 2-gear diamond drill suitable for both hand-held and stand-mounted operation. Its incredibly powerful 2,000 W motor facilitates breakthroughs in reinforced concrete of up to 180 mm in diameter. It is also extremely durable due to a robust design and a gearbox with oil-bath lubrication. Capable of wet and dry operation, this drill is perfect for versatile applications. This tool is intended for core drilling in concrete and reinforced concrete. It is compatible with the GCR 180 Professional stand as well as the Bosch Click & Clean dust extraction system. The GDB 180 WE Professional also features 2-gears. Dust extraction adapter, Ball valve, Carrying case
Attributes
Concrete, possible range
180 mm
Concrete, possible range, from
180 mm
Drill spindle connnection thread
1 1/4" UNC
Drilling area
180 mm
Idle speed
900/2800 min-1
Idle speed, 1st gear
900 min-1
Idle speed, 2nd gear
2800 min-1
Masonry, possible area
180 mm
Masonry, possible area, from
180 mm
Measurement uncertainty k (drilling in concrete)
1.5 m/s²
Nominal input power
2000 W
Suitability
Wet drilling in concrete
Tool holder
1 1/4" UNC
Verpackungsabmessungen (Breite x Länge x Höhe)
408 x 619 x 146 mm
Vibration emission value ah [Drilling in concrete]
4.8 m/s²
Voltage, electrical
230 V
Weight
5.2 kg
Werkzeugabmessungen (Länge)
481 mm
