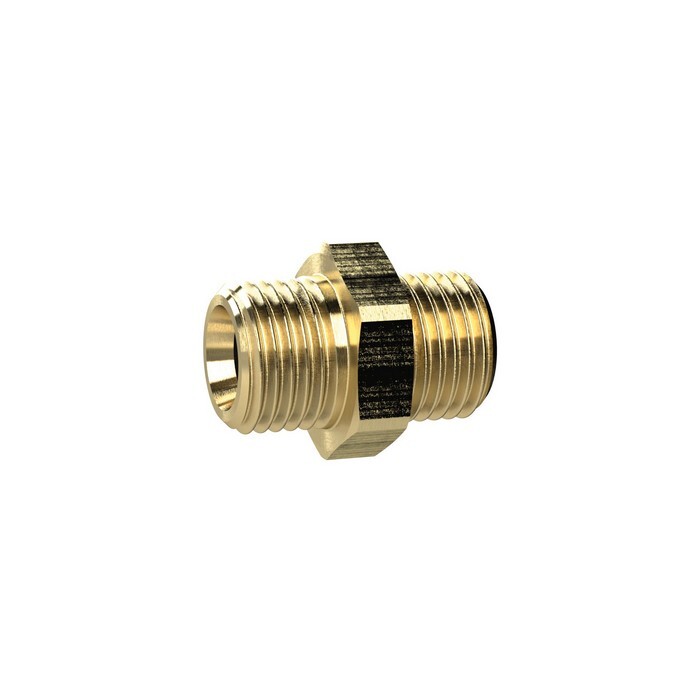

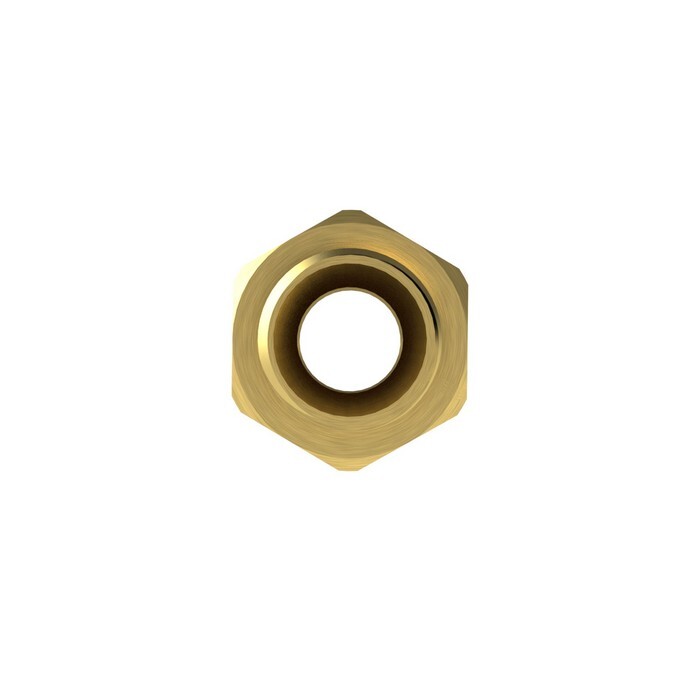

Double threaded nipple cyl. G 1/8 a. G
1/8 a. SW 14 BrassItem-no.: 1372814Supplier number: MS2521818EAN: 4047322464666
Quantity:
1 STKPackable
Item available in 34 variants:
Description
Double threaded nipple, Cyl., G 1/8 o., G 1/8 o., AF 14, Brass, Max. working pressure 25 bar, Max. operating temperature 150 °C
Attributes
L1
18 mm
L2
7 mm
Material
Brass CW614N
Operating temperature max.
150 °C
Riegler article number
131744
SW
14 mm
Screw thread 1
G 1/8
Screw thread 2
G 1/8
Working pressure max.
25 bar
l3
7 mm
