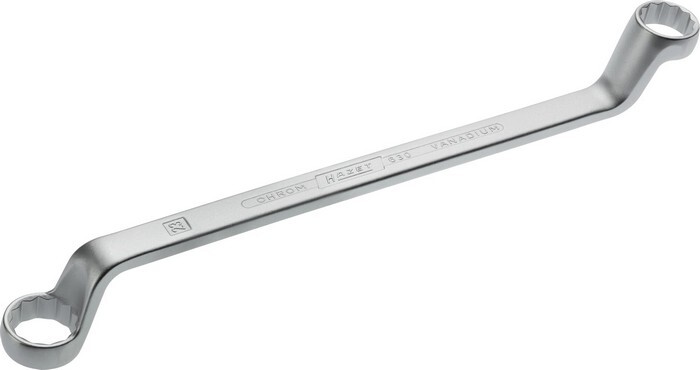

Double ring spanner
SW 21x23 mm L=315 mm chrome-plated Hazet 630-21X23Item-no.: 1571627Supplier number: 630-21X23EAN: 4000896026388
PU (Packaging): 10 STKQuantity:
1 STKPackable
Description
· Deep offset · Heads thin-walled · Surface: chrome-plated, head polished · DIN 838, ISO 10104 · Made in Germany · Output: Outside 12-point traction profile · Wrench size: 21 x 23 mm · Dimensions / length: 315 mm · Net weight: 0.4 kg. Not according to DIN -
Attributes
Dimensions/length
315 mm
Hazardous substance labelling
false
Head thickness (a1)
12.5 mm
Head thickness (a2)
13.2 mm
Head width (b1)
30.7 mm
Head width (b2)
33.6 mm
Length (battery)
315 mm
Material
Chrome vanadium
Net weight
0.4 kg
Norm
ISO 10104
Offset (height)
34 mm
Output
Exterior double hexagonal traction profile
Series
auya_630
Surface
chrome-plated, polished head
Wrench width (s1)
21 mm
Wrench width (s2)
23 mm
Wrench width s1xs2
21 x 23
