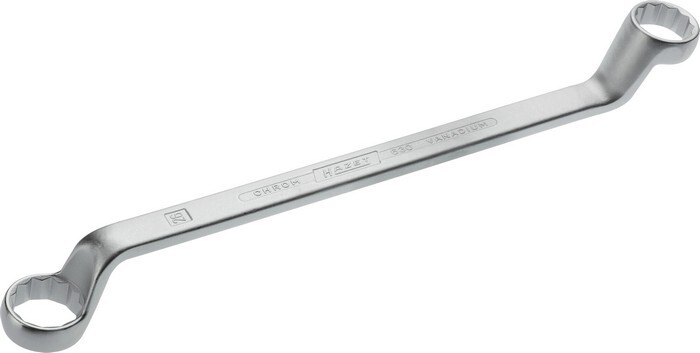

Double ring spanner
SW 24x26 mm L=330 mm chrome-plated Hazet 630-24X26Item-no.: 1571628Supplier number: 630-24X26EAN: 4000896026401
PU (Packaging): 10 STKQuantity:
1 STKPackable
Description
· Deep offset · Heads thin-walled · Surface: chrome-plated, head polished · DIN 838, ISO 10104 · Made in Germany · Output: Outside 12-point traction profile · Wrench size: 24 x 26 mm · Dimensions / length: 330 mm · Net weight: 0.46 kg. Not according to DIN -
Attributes
Dimensions/length
330 mm
Hazardous substance labelling
false
Head thickness (a1)
13.5 mm
Head thickness (a2)
14.1 mm
Head width (b1)
35.1 mm
Head width (b2)
37.1 mm
Length (battery)
330 mm
Material
Chrome vanadium
Net weight
0.46 kg
Norm
ISO 10104
Offset (height)
34 mm
Output
Exterior double hexagonal traction profile
Series
auya_630
Surface
chrome-plated, polished head
Wrench width (s1)
24 mm
Wrench width (s2)
26 mm
Wrench width s1xs2
24 x 26
