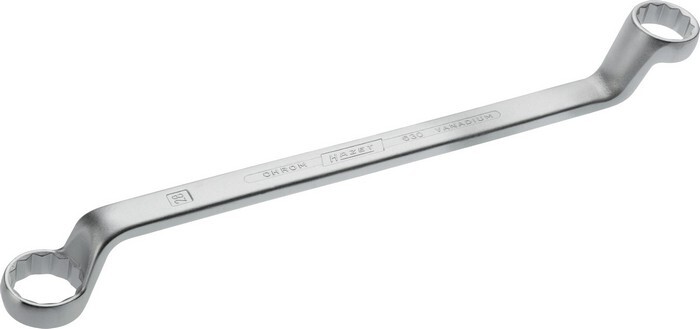

Double ring spanner
SW 25x28 mm L=350 mm chrome-plated Hazet 630-25X28Item-no.: 1571629Supplier number: 630-25X28EAN: 4000896026432
PU (Packaging): 10 STKQuantity:
1 STKPackable
Description
· Deep offset · Heads thin-walled · Surface: chrome-plated, head polished · DIN 838, ISO 10104 · Made in Germany · Output: Outside 12-point traction profile · Wrench size: 25 x 28 mm · Dimensions / length: 350 mm · Net weight: 0.55 kg. Not according to DIN -
Attributes
Dimensions/length
350 mm
Hazardous substance labelling
false
Head thickness (a1)
13.8 mm
Head thickness (a2)
14.7 mm
Head width (b1)
36.5 mm
Head width (b2)
39.9 mm
Length (battery)
350 mm
Material
Chrome vanadium
Net weight
0.55 kg
Norm
ISO 10104
Offset (height)
35 mm
Output
Exterior double hexagonal traction profile
Series
auya_630
Surface
chrome-plated, polished head
Wrench width (s1)
25 mm
Wrench width (s2)
28 mm
Wrench width s1xs2
25 x 28
