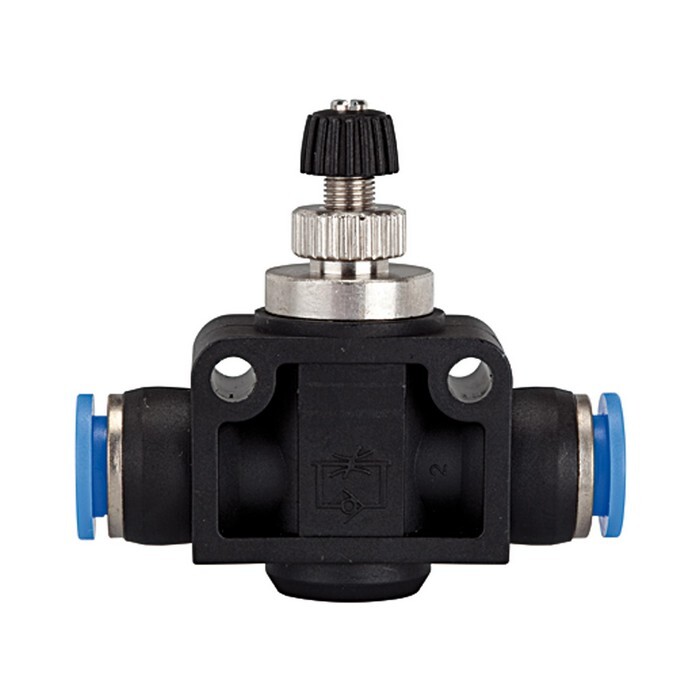

Throttle check valve
2x SD6 Blue series, KU- nickel-plated brassItem-no.: 1113928Supplier number: 181.0606EAN: 4047322200509
Quantity:
1 STKPackable
Item available in 5 variants:
Description
Throttle check valve »Blue Series«, Plug connector, Straight, for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
6 mm
L1
47,1 mm
L2 Max.
47,2 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109973
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
l2 Min.
41 mm
