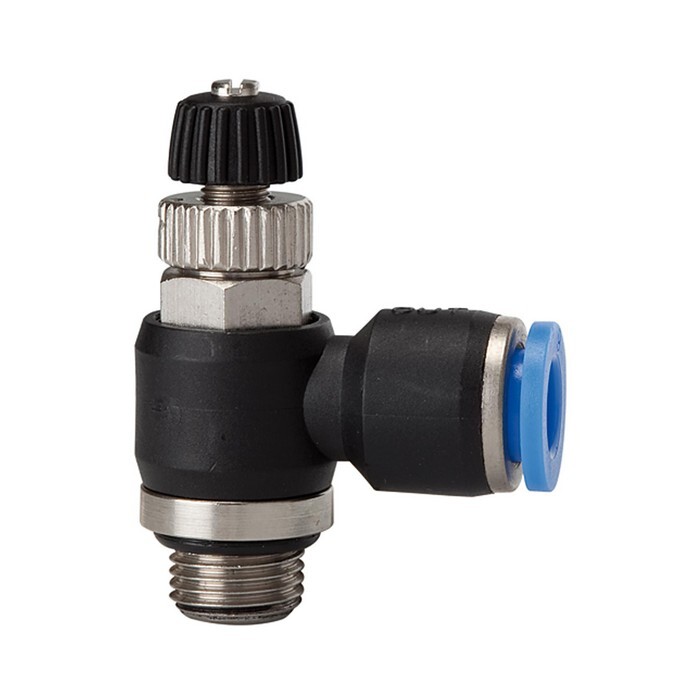

Drosselrückschlagventil Winkelform
AG 1/4", SD6, drehbar, Abluftdrossel Blaue Serie, KU- Messing vernickeltItem-no.: 1114294Supplier number: 188.014-6EAN: 4047322201599
Quantity:
1 STKPackable
Item available in 17 variants:

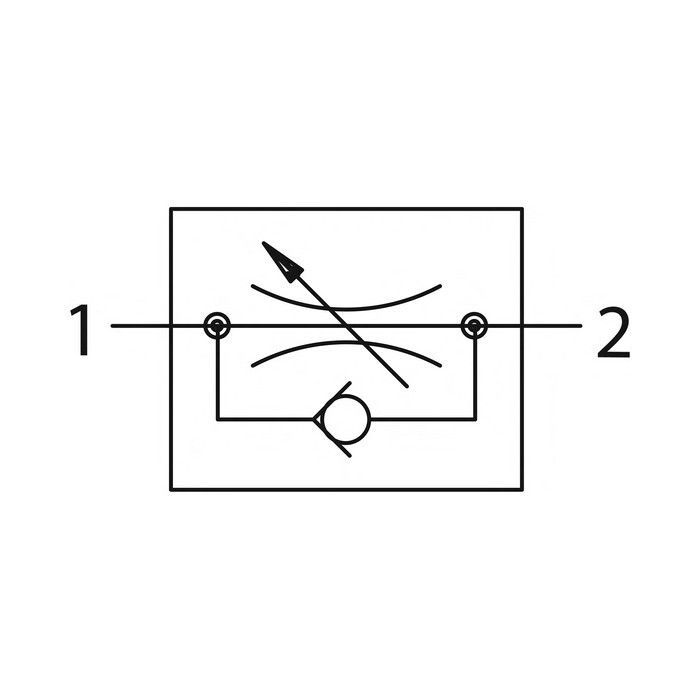

Description
Throttle check valve »Blue Series«, Discharge throttle, G 1/4 o., for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
6 mm
L1

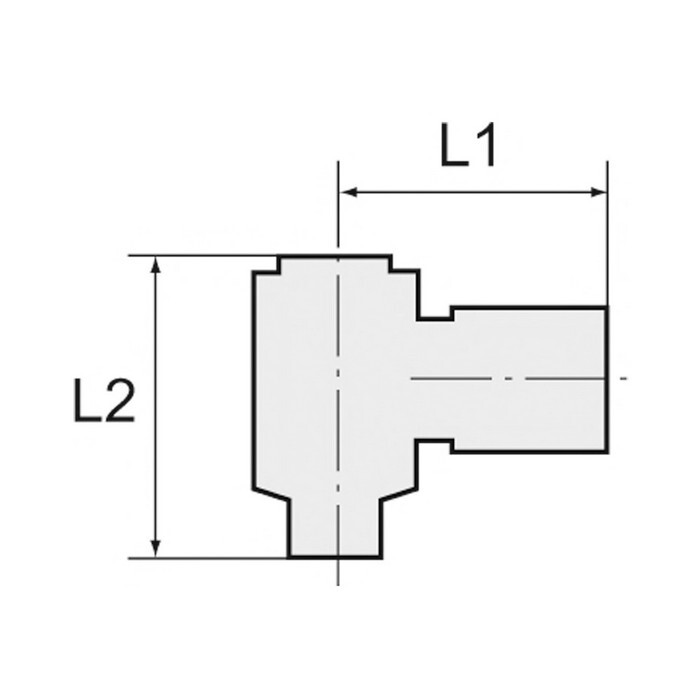

24,9 mm
L2 Max.
51 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
110018
SW
14 mm
Screw thread
G 1/4
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
l2 Min.
44 mm
