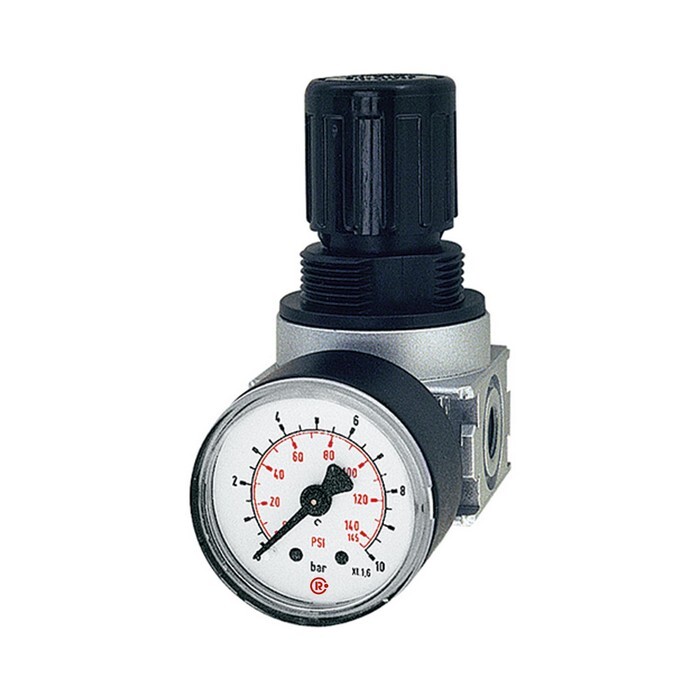

Pressure regulator multifix-mini series
IG 1/4", DN5, 1100l/min, 0.5-10 bar incl. pressure gaugeItem-no.: 1116990Supplier number: R 06-10EAN: 4047322163842
Quantity:
1 STKPackable
Item available in 7 variants:
Description

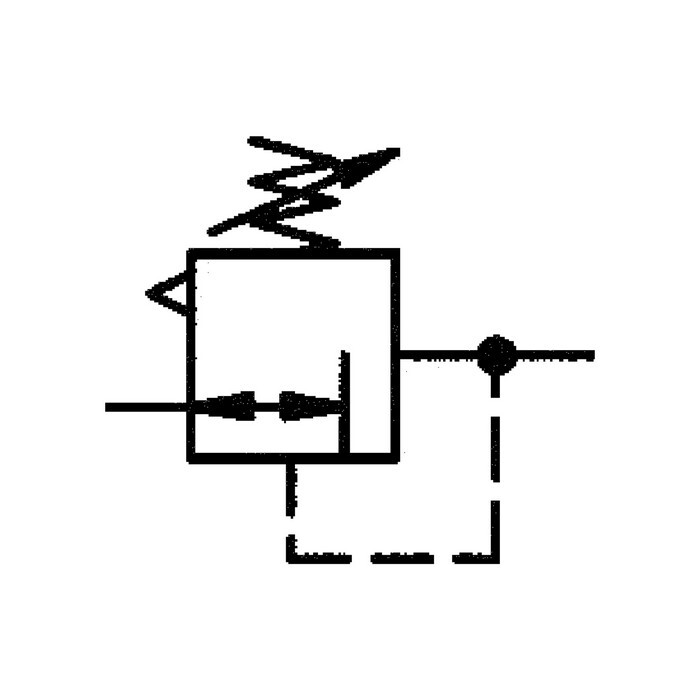

Pressure regulator »multifix-mini«, incl. pressure gauge, Size 0, G 1/4, Input pressure max. 16 bar, Control range 0. 5 - 10 barReversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design. The pressure setting can be locked by pushing the button down.
Attributes
A
40 mm
Ambient temperature max.
60 °C
Control range max.
10 bar
Control range min.
0,5 bar
DN
5
Flow rate
1450 l/min
Housing
Zinc die casting
Inlet pressure max.
16 bar
Medium temperature max.
60 °C
Pressure gauge display max.
16 bar
Pressure gauge display min.
0 bar
Product range
multifix-mini
Riegler article number
100343
Screw thread
G 1/4
Sealing material
NBR
Size
0
Spring cap
POM brass
b
85 mm
c
63 mm
d
22 mm
