Pressure switch 4-way
230 V, 16 A, pressure P-Off 4 - 12 bar Condor MDR 2/11 212195Item-no.: 1168274Supplier number: 2506214EAN: 9006248009721
Quantity:
1 STKPackable
Description
Druckschalter 4-Wege 230 V, 16 A, Druck P-Aus 4 - 12 bar Condor MDR 2/11 212195
Attributes
Connection vertical
3/8 "
Current consumption
16 A

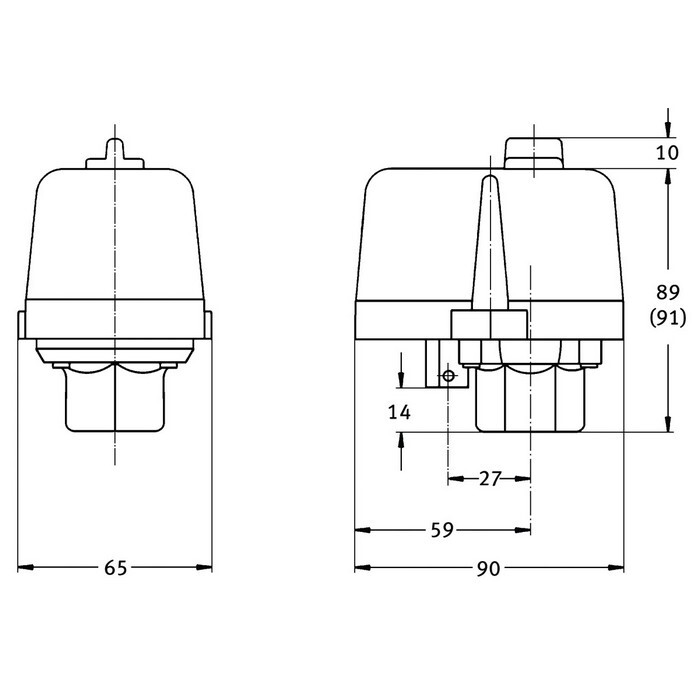

Height (product) approx.
101 mm
Horizontal connection
3 x ¼ "
Length (product) approx.
90 mm
Relief valve type
AEV2S
Switch-off pressure
4 – 12 bar
Switch-off pressure default setting
6 – 8 bar
Switching capacity
2,2 kW
Version
Alternating current
Weight (net) approx.
350 g
Width/depth (product) approx.
65 mm
