Druckregler Edelstahl
G 1/2" 0,5-15 bar regel. für flüssige Medien, Manometer EdelstahlItem-no.: 1571136Supplier number: DRES.G12NR.1-15BEAN: 4047322729727
Quantity:
1 STKPackable
Description
Stainless steel pressure regulator, 1. 4404, without secondary venting (non-reversible), G 1/2, Control range 1. 0 - 15 barStainless steel regulators containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.
Attributes

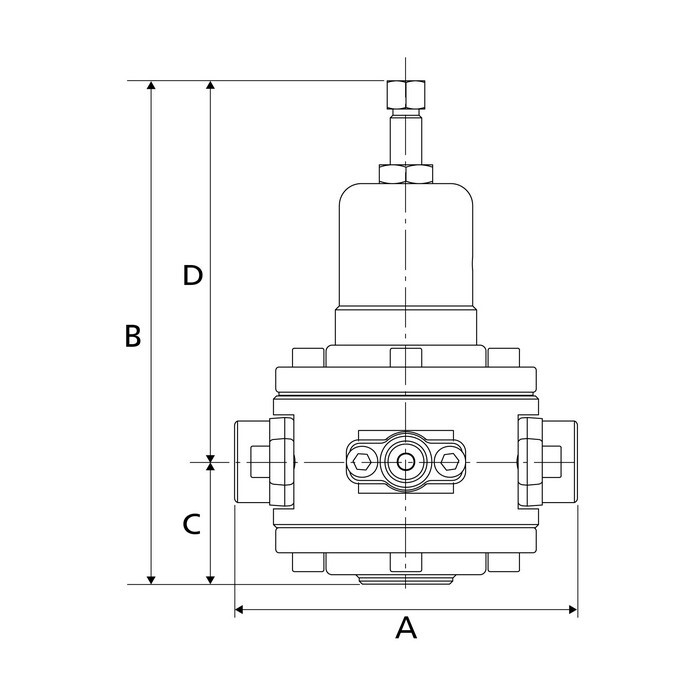

A
109,0 mm
Ambient temperature max.
80 °C
Control range max.
15 bar
Control range min.
1 bar
Flow rate
2800 l/min
Flow rate measurement
at <sub>P1</sub> = 8 bar, P2<sub>= </sub> 6 bar and pressure drop<sub>?p</sub>? 1 bar
Housing
Stainless steel 1.4404 (AISI 316L)
Inlet pressure max.
50 bar
Medium temperature max.
80 °C
Membrane
PTFE on NBR carrier
Riegler article number
129273
Screw thread
G 1/2
Sealing material
FKM
b
160,0 mm
c
39,0 mm
d
121,0 mm
