Riegler

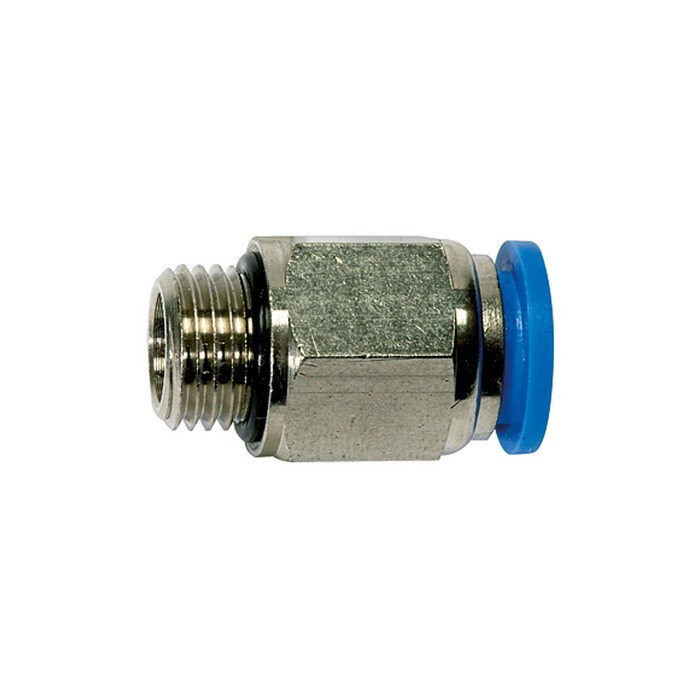

Einschraubsteckverbinder gerade

AG 1/2" sechsk., SD6, L 23,2 mm, O-Ring Blaue Serie, Messing vernickelt
Item-no.: 1114080Supplier number: 122.012-6EAN: 4047322022507

PU (NWVE): 10 STKQuantity: ​​ 1 STKPackable
Item available in 24 variants:
Immediately Available

Description
Straight push-in fitting »Blue Series«, G 1/2 o., for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
6 mm
Hexagon socket
4 mm

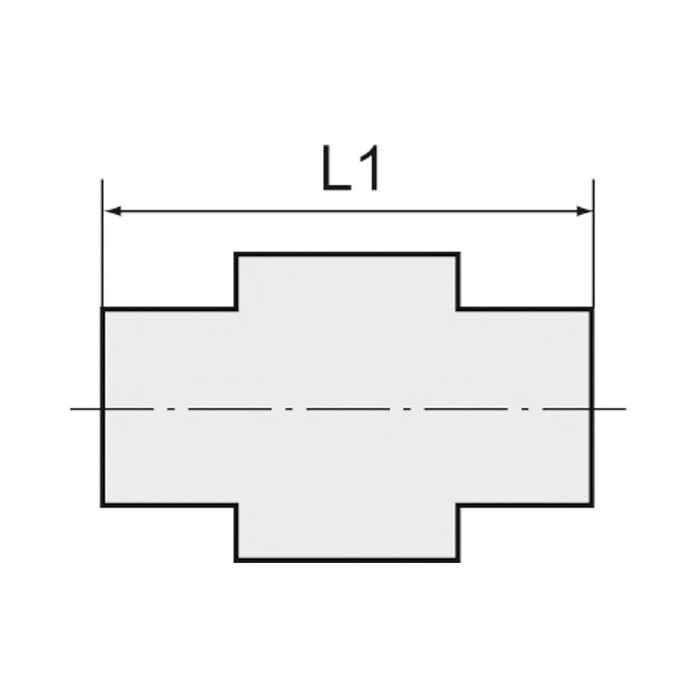

L1
22,6 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109129
SW
12 mm
Screw thread
G 1/2
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
