Description

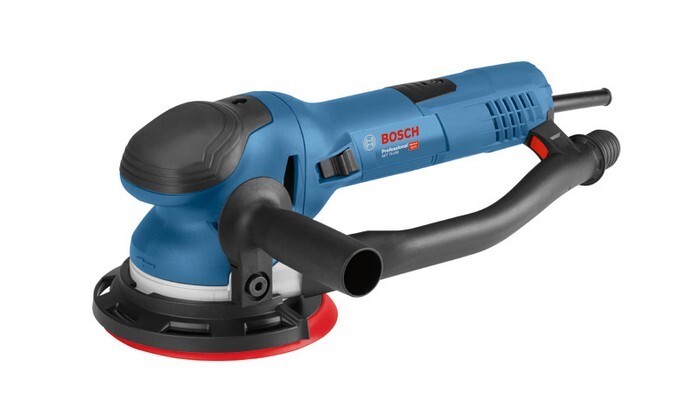

Random Orbit Sander GET 75-150, The GET 75-150 Professional is Bosch’s 150-mm corded active-driven random orbit sander with outstanding tool control and handling. It is designed with a perfectly ergonomic palm rest and a handle with a gripping circumference of only 18 cm for best tool control. Thanks to its multi-hole sanding pad, all sanding sheets irrespective of the hole pattern can be conveniently fitted and the dust extraction is significantly increased. It features an extremely powerful 750 W motor and direct driven pad rotation that deliver a up to 45% higher removal rate. This corded sander is intended for basic sanding, in-between sanding, lacquer removal, finishing, and polishing surfaces. It is applicable on wood, veneer, lacquer, and filler, as well as mineral and acrylic. It is compatible with the Bosch Click & Clean dust extraction system. The GET 75-150 also includes constant speed, direct-driven mode, an edge protector, a 150 mm sanding pad fitted with a hook-and-loop system for fastening sanding sheets and speed selection. Sanding pad (150 mm) (2 608 900 007), L-BOXX 238 (1 600 A01 2G2), 1 x sanding sheet M480, Best for Wood + Paint, 80 (available separately as set of 5: 2 608 621 162), 1 x sanding sheet M480, Best for Wood + Paint, 120 (available separately as set of 5: 2 608 621 164), 1 x sanding sheet M480, Best for Wood + Paint, 180 (available separately as set of 5: 2 608 621 166), Guard ring for 150 mm (2 607 017 497), Auxiliary handle incl. screw (2 607 017 500), Suction socket for 150 mm (2 607 017 499), Hex key
Attributes
Eccentricity
2.25 mm
Idle speed
3300 - 7300 min-1
Leerlaufdrehzahl, bis zu
7300 min-1
Leerlaufdrehzahl, von
3300 min-1
Measurement uncertainty k (sanding solid wood)
1.5 m/s²
Nominal input power
750 W
Sanding attachment
Velcro fastener
Sanding disc diameter
150 mm
Sanding disc speed
290 - 640 min-1
Sanding disc speed, from
290 min-1
Sanding disc speed, up to
640 min-1
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 441 x 256 mm
Vibration circle diameter
4.5 mm
Vibration emission value ah [Sanding solid wood]
6.5 m/s²
Vibration rate
6600 - 14600 min-1
Vibration rate, from
6600 min-1
Vibration rate, up to
14600 min-1
Voltage, electrical
230 V
Weight
2.6 kg
Werkzeugabmessungen (Länge)
417 mm
