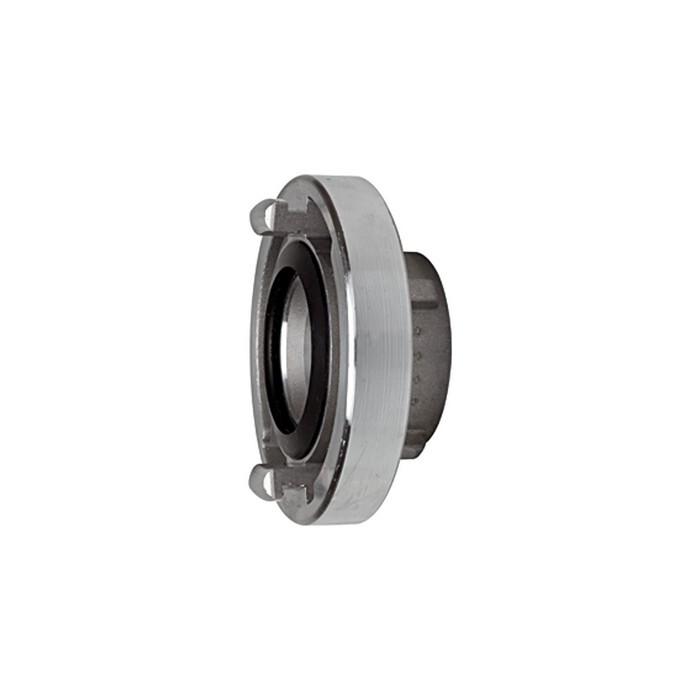

Fixed coupling
2" internal thread, Storz C-52 Cast aluminium, PN10Item-no.: 1174567Supplier number: 5111050066EAN: 4047322254656
Quantity:
1 STKPackable
Description
Storz adapter, Aluminium, Storz size 52-C, Tappet distance 66 mm, G 2 IT, Operating pressure max. 16 bar, Temp. -40 °C to 110 °CHigh-quality series in forged aluminium. For quick and simple hose connections. User friendly; the coupling elements are joined without damaging the seal. Applications: Water lines, industrial plant engineering, firefighting.
Attributes
Bracket spacing
66 mm
Internal thread
G 2
Material
Aluminium
Max. operating pressure
16 bar
Operating temperature max.
110 °C
Operating temperature min.
-40 °C
Riegler article number
108229
Sealing material
NBR
Storz size
52-C
