Joining connection

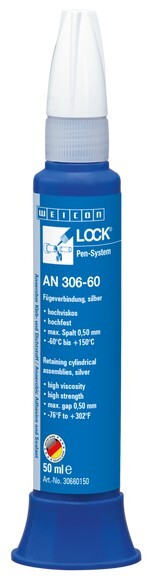

50 ml pen, high strength, high viscosity Weicon AN 306-60Item-no.: 1123119Supplier number: 10019955EAN: 4024596009953
PU (Packaging): 12 STKQuantity:
1 STKPackable
Item available in 3 variants:
Description
· hochviskos · hochfest · schwer demontierbar
Attributes
Breaking torque
35 - 45 Nm
Colour
silver
Construction material class|DIN 4102
B2
End hardness|(100 % of strength)
3 - 6 Hours
For thread connection up to
R 2\
Further torque
10 - 20 Nm
Gap bridging up to max.
0,5 mm
Hand strength
15 - 30 Min.
Sales bundle
Tube
Shear strength Nmm² (DIN 54452)
25 - 30 N/mm²
Temperature resistance
-60°C to +150°C
Viscosity
150.000 - 900.000 ht mPa·s
