DE Technisches Datenblatt 30610150 WEICONLOCK AN 306-10 Fügeverbindungcnco_de_tds_30610150_weiconlock_an_306-10_fuegeverbindung.pdf
230.87 kB
Fügeverbindung für passive Werkstoffe

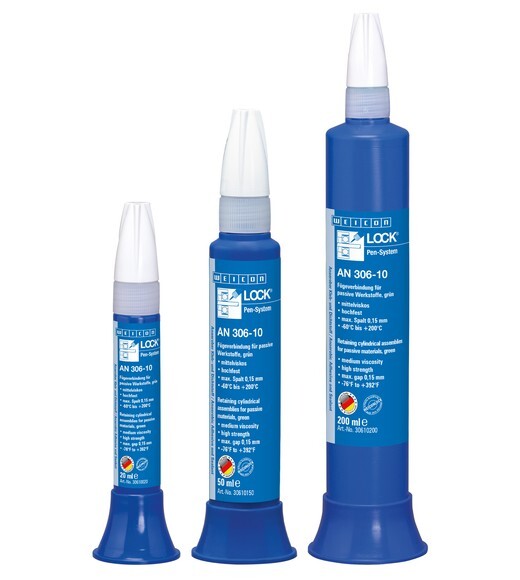

50 ml Pen, hochfest, mittelviskos Weicon AN 306-10Item-no.: 1123106Supplier number: 10017883EAN: 4024596020828
PU (Packaging): 12 STKQuantity:
1 STKPackable
Item available in 3 variants:
Description
· medium viscosity · high strength · hard to disassemble
Attributes
Breaking torque
15 - 20 Nm
Colour
green
Construction material class|DIN 4102
B2
End hardness|(100 % of strength)
6-12 Hours
For thread connection up to
M 20 R ¾\u201C
Further torque
30 - 35 Nm
Gap bridging up to max.
0,15 mm
Hand strength | at room temperature
5 - 10 Min.
Sales bundle
Plastic bottle
Shear strength Nmm² (DIN 54452)
25 - 35 N/mm²
Temperature resistance
-60°C to +200°C
Viscosity
700 - 1.000 nt mPa·s
