Functional hinge
GN 437.4-ZD-60-60-C2-SR Detent -3° 117°ZD - Zinc die casting
Item-no.: 1479634Supplier number: 437.4-ZD-60-60-C2-SREAN: 4045525535954
Quantity:
1 PiecePackable
Item available in 4 variants:
Colour: SR - silver, RAL 9006, textured matt
xColour: SW - black, RAL 9005, textured matt
Colour: SR - silver, RAL 9006, textured matt
Colour: SR - silver, RAL 9006, textured matt
Colour: SW - black, RAL 9005, textured matt
Price and stock visible after login
Description
Hinges GN 437.4 with detent hold door and covers in the given indexing position without additional mechanics. This is particularly advantageous when machines and systems must be frequently opened and closed for loading and unloading, and it is also useful for servicing or repairs. Undesirable independent closing and opening is prevented. The -3° of the type C2 moreover ensures that the door or cover presses slightly against the housing frame when closed.
Attributes
Colour
SR - silver, RAL 9006, textured matt
Form
C2 - detent positions -3° and 117°, medium holding torque

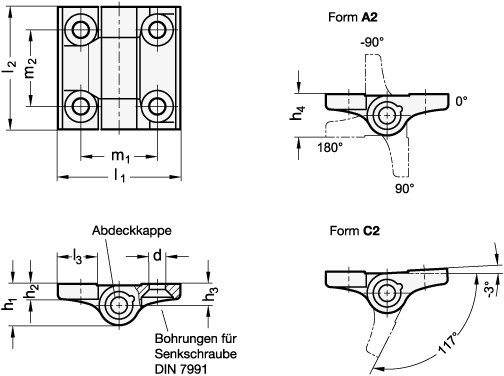

L1
60
L2
60
Material
ZD - Zinc die casting
RoHS
Ja
Weight
0.155 kg
d
8.3
h1
18.5
h2
7.5
h3
9.5
h4
19
l3
20
m1
36
m2
36
