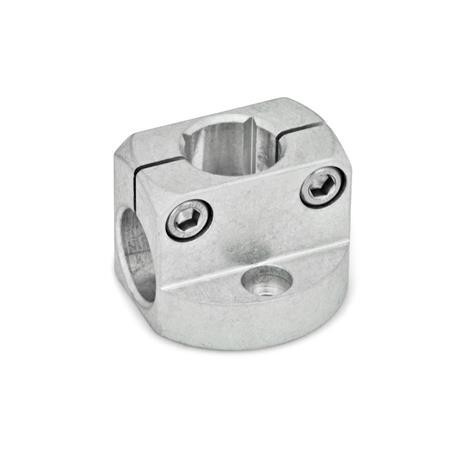

Foot clamp holder
GN 473-B15-MT mattAL - Aluminium
Item-no.: 1203520Supplier number: 473-B15-MTEAN: 4045525639522
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
How do you search for this item?
Description
Base plate mounting clamps GN 473 have a horizontal and a vertical clamping bore. The vertical clamping bore is additionally fitted with a square. The bore distance m corresponds to base plate mounting clamps GN 473, base plate swivel mounting clamps GN 485 and flanged mounting bolts GN 480 as well as retaining magnets GN 51.6. In the standard version, the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN 511 (article code see table of dimensions).
Attributes
Borehole d1
B 15
Clamping lever sets for d3
511-M6-20
L1
30
L2
10
Material
AL - Aluminium
RoHS
Ja
Surface
MT - matt, vibratory ground
Weight
0.050 kg
b1
20
b2
41
d2
45
l3
10
l4
4
m
32
s Square
12
