Joint piece
GN 752-16-M16 for fork joints GN 752ST - Steel
Item-no.: 1181401Supplier number: 752-16-M16EAN: 4045525372894
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
Joints pieces GN 752 are designed to be used in combination with fork heads DIN 71752 respectively fork joints GN 751.

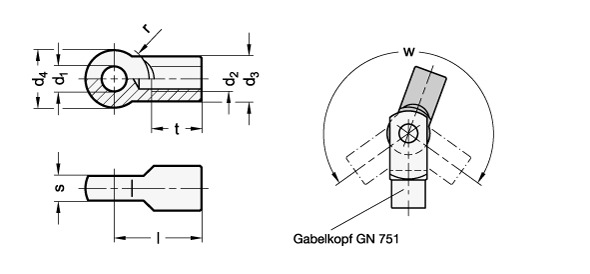

Attributes
Borehole d1
16
Length l
56
Material
ST - Steel
R
22
RoHS
Ja
Screw thread d2
M 16
Weight
0.190 kg
d3
26
d4
36
s
16
w min.
216°
