Ganter

Handle bar

GN 310-10-125-E-ZB galvanised, blue chromated
ST - Steel
Item-no.: 1345596Supplier number: 310-10-125-E-ZBEAN: 4045525134676

PU (Packaging): 10 PieceQuantity: ​​ 1 PiecePackable
Item available in 90 variants:
Short-term Sourcing

Description
Gear lever handles GN 310 are highly universal options for movement and operation. Actuation of hydraulic valves and control levers eccentric cams are example uses of these standard parts.
Attributes

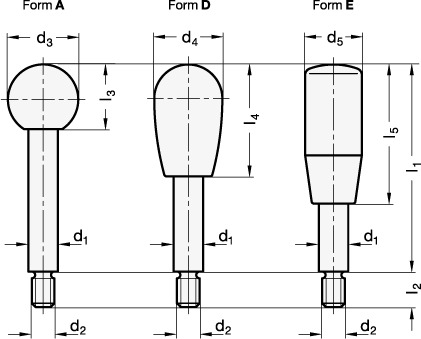

Form
E - Cylinder knob GN 519
L2
11
Length l1
125
Material
ST - Steel
RoHS
Ja
Screw thread
M 8
Shaft diameter d1
10
Surface
ZB - galvanised, blue passivated
Weight
0.076 kg
d5
21
l5
50
