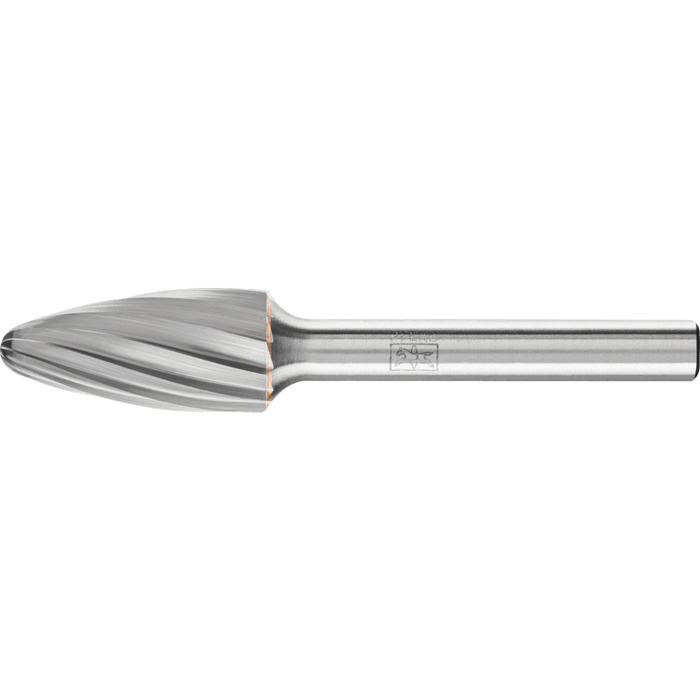

Carbide burr RBF 1225/6 Z1

Ø 12 mm x L 25 mm Shank Ø 6 mm Round arch shape, horse
Item-no.: 1229263Supplier number: 21117816EAN: 4007220047774

Quantity: ​​ 1 STKPackable
Short-term Sourcing

Description
Cut 1 is especially well-suited to machining of non-ferrous metals, steel and cast iron. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Tree-shaped burr with radius end according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Corner design radius
2.5 mm
Length, toothed
25 mm
Length, total
65 mm
RPM from, grey cast iron, white cast iron
16000 RPM
RPM from, stainless and acid-resistant steels
7000 RPM
RPM from, steels up to 1,200 N/mm²
16000 RPM
RPM of, soft non-ferrous metals
16000 RPM
RPM up to, grey cast iron, white cast iron
24000 RPM
RPM up to, soft non-ferrous metals
24000 RPM
RPM up to, stainless and acid-resistant steels
12000 RPM
RPM up to, steels up to 1,200 N/mm²
24000 RPM
Series
byly_HM_RBF_21
Toothing
1
Ø External metric
12 mm
Ø Shaft metric
6 mm
