Products
Pferd

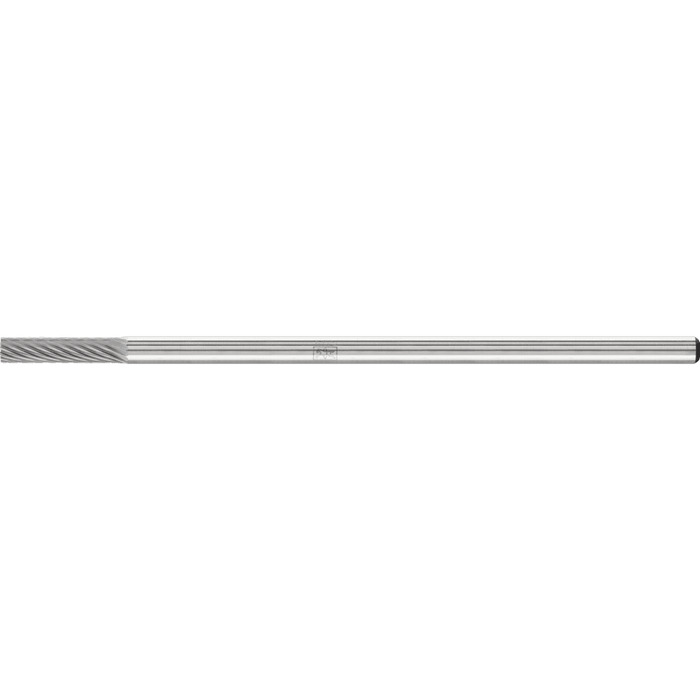

Carbide burr ZYA 0313/3 Z5 GL75

Ø 3 mm x L 13 mm Shank Ø 3 mm without face serration, horse
Item-no.: 1230657Supplier number: 21201257EAN: 4007220779644

Quantity: ​​ 1 STKPackable
Short-term Sourcing

Description
Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Cylindrical burr according to DIN 8032 with cut conforming to DIN 8033. Tungsten carbide burrs with a long shank are ideal for efficiently machining small, hard-to-reach areas of components. They can be shortened if required. Tungsten carbide burrs with the designation GL 75 mm are made from solid tungsten carbide, which means they can only be shortened using diamond tools.
Attributes
Length, toothed
13 mm
Length, total
75 mm
RPM up to, hard non-ferrous metals
31000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
31000 RPM
RPM up to, high-temperature resistant materials
31000 RPM
RPM up to, stainless and acid-resistant steels
31000 RPM
RPM up to, steels up to 1,200 N/mm²
31000 RPM
Series
byly_HM_ZYA
Toothing
5
Ø External metric
3 mm
Ø Shaft metric
3 mm
