Ganter

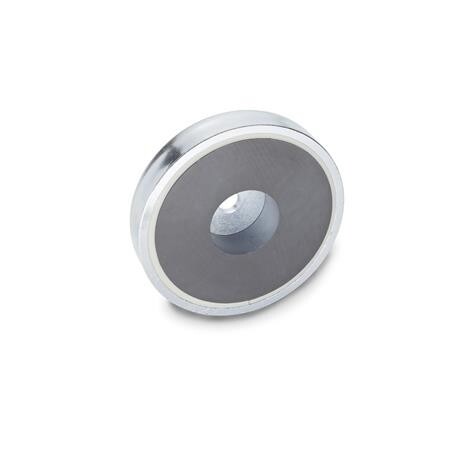

Holding magnet, disc shape

GN 50.4-HF-40-8-5,5 Drill hole
HF - Hard ferrite
Item-no.: 1203804Supplier number: 50.4-HF-40-8-5,5EAN: 4045525663862

Quantity: ​​ 1 STKPackable
Item available in 34 variants:
Immediately Available

Description
Retaining magnets GN 50.4 are combined with a steel housing and a plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface. To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.
Attributes
Diameter d
40
Material
HF - Hard ferrite
Nominal holding forces in NHF
90
RoHS
Ja
Weight
0.053 kg
d2 (HF)
5.5
h
8
