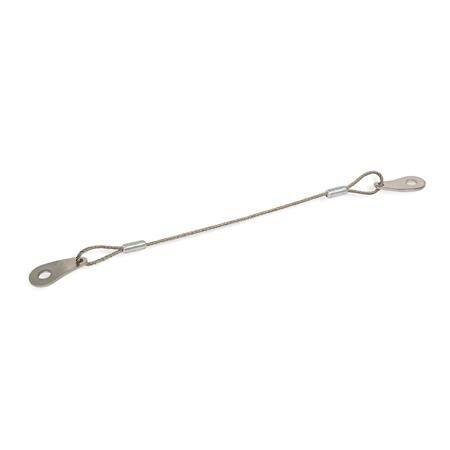

Holding rope
GN 111.2-150-C-BL stainless steelNI - Stainless steel
Item-no.: 1657880Supplier number: 111.2-150-C-BLEAN: 4045525860179
Quantity:
1 PiecePackable
Item available in 12 variants:
Holding rope GN 111.2-150-C-BL stainless steel
xHolding rope GN 111.2-320-E-BL stainless steel
Holding rope GN 111.2-500-C-BL stainless steel
Holding rope GN 111.2-200-D-BL stainless steel
Holding rope GN 111.2-500-D-BL stainless steel
Holding rope GN 111.2-200-C-BL stainless steel
Holding rope GN 111.2-150-D-BL stainless steel
Holding rope GN 111.2-200-E-BL stainless steel
Holding rope GN 111.2-320-C-BL stainless steel
Holding rope GN 111.2-500-E-BL stainless steel
Holding rope GN 111.2-150-E-BL stainless steel
Holding rope GN 111.2-320-D-BL stainless steel
Holding rope GN 111.2-150-C-BL stainless steel
Price and stock visible after login
Description

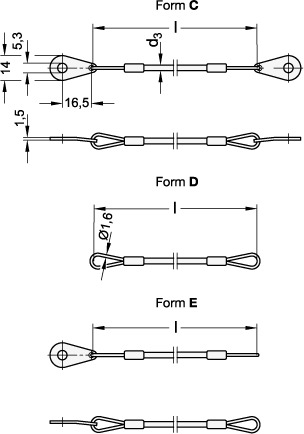

Retaining cables GN 111.2 are available in 5 different types and thus, can be used for numerous different applications, e.g. a securing device and as a connection and fastening cables. The coating of versions TR and SW protects adjacent parts from chafing or other damage. The smooth surface is also pleasant to the touch. The black design is visually discreet and is also used in situations where the reflections on the surface are to be minimized. For all types the loops are reversed laterally and attached parallel to each other, which is not entirely considered in the simplified drawing. The load values given in the table are non-binding guide values and rule out any liability.
Attributes
Chain length l
150
Colour
BL - blank
Form
C - with 2 fixing lugs
Material
NI - Stainless steel
RoHS
Ja
Static load capacity in N
1800
Weight
0.008 kg
