Description

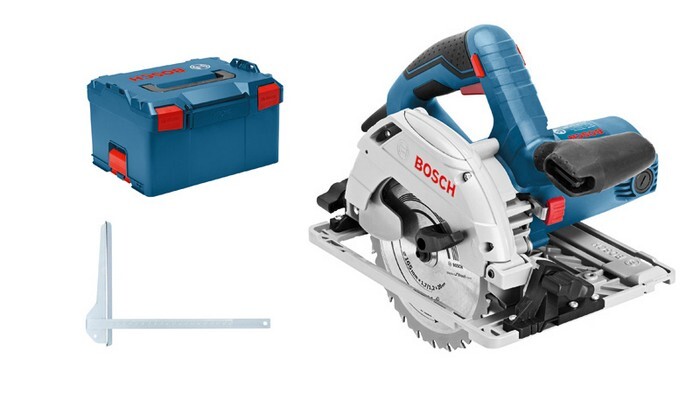

Hand-Held Circular Saw GKS 55+GCE, The compact GKS 55+ GCE Professional achieves a high cutting capacity even where it is normally only possible with much larger saw blades. In a wide range of material, the circular saw reaches a cutting depth of 63 mm thanks to its two-stage gearbox. It also runs smoothly on the Bosch guide rail system and can be guided perfectly for accurate sawing. The electronic speed control allows variable speed for working with a wide variety of materials. Accurate results in sawing different wood materials such as derived lumber products like OSB, plywood, or MDF. It is compatible with the Bosch guide rail system and also with the rail systems of Mafell, Festool, and Makita. The GKS 55+ GCE Professional features an air blower, dust port connector, aluminium die-cast footplate, constant speed, fast motor brake, soft start, and spindle lock. Internal hexagon, 1 x circular saw blade, Standard for Wood speed, 165 x 1.7 x 20 mm, 12 (2 608 642 600), L-BOXX 238 (1 600 A01 2G2), Parallel guide (1 608 190 007), Vacuum adapter
Attributes
Guide rail compatible
ja
Idle speed
2100 - 4700 min-1
Leerlaufdrehzahl, bis zu
4700 min-1
Leerlaufdrehzahl, von
2100 min-1
Max. cutting capacity in wood (45°)
48 mm
Max. cutting capacity in wood (90°)
63 mm
Measurement uncertainty k (wood sawing)
1.5 m/s²
Nominal input power
1350 W
Saw blade bore diameter
20 mm
Saw blade diameter
165 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 440 x 255 mm
Vibration emission value ah [Wood sawing]
4.0 m/s²
Weight
3.8 kg
