Description

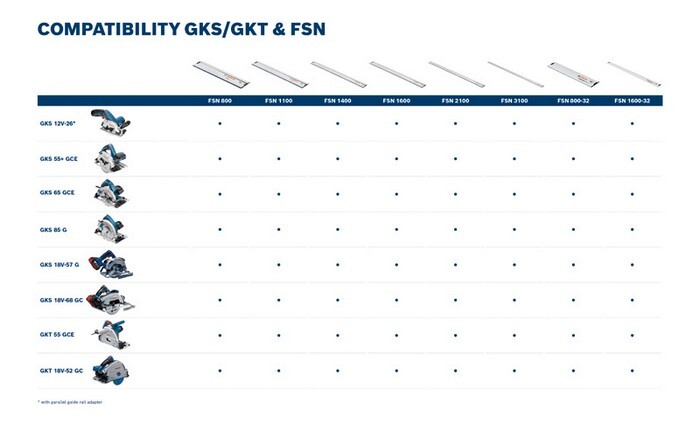

Hand-Held Circular Saw GKS 85 G, With its high power and guide rails, the GKS 85 G Professional is an ideal partner for precise, guided cuts. Its high-performance motor with 2,200 W for cuts up to 85 mm makes it a good choice for hard jobs. Its precise cutting results are the outcome of the compatible Bosch guide rail system. The GKS 85 G Professional allows a constantly better view of the score line by using an optimised chip deflector and a turbo blower. Different material like solid wood and such derived lumber products as OSB, plywood, or MDF can´t stop the circular saw. It is compatible with the Bosch guide rail system as well as with the guide rail systems of Mafell, Festool, and Makita. The GKS 85 G Professional is equipped with a spindle lock, aluminium die-cast footplate, a dust port connector, and soft start. Dust extraction adapter (spare part number 1 619 P01 627), Hex key WAF 5 (spare part number 1 907 950 006), 1 x circular saw blade, Optiline Wood, 235 x 30/25 x 2.8 mm, 24 (2 608 640 725), L-BOXX374N (1 600 A01 2G3), 1/1 L-BOXX inlay for tool (1 600 A00 2W4)
Attributes
Guide rail compatible
ja
Idle speed
5000 min-1
Leerlaufdrehzahl, von
5000 min-1
Max. cutting capacity in wood (45°)
65 mm
Max. cutting capacity in wood (90°)
85 mm
Measurement uncertainty k (wood sawing)
1.5 m/s²
Nominal input power
2200 W
Saw blade bore diameter
30 mm
Saw blade diameter
235 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
390 x 440 x 360 mm
Vibration emission value ah [Wood sawing]
3.5 m/s²
Voltage, electrical
230 V
Weight
7.8 kg
