Technische Dokumentationbyhx_p_7-41.pdf
1.89 MB
Item available in 4 variants:
Description

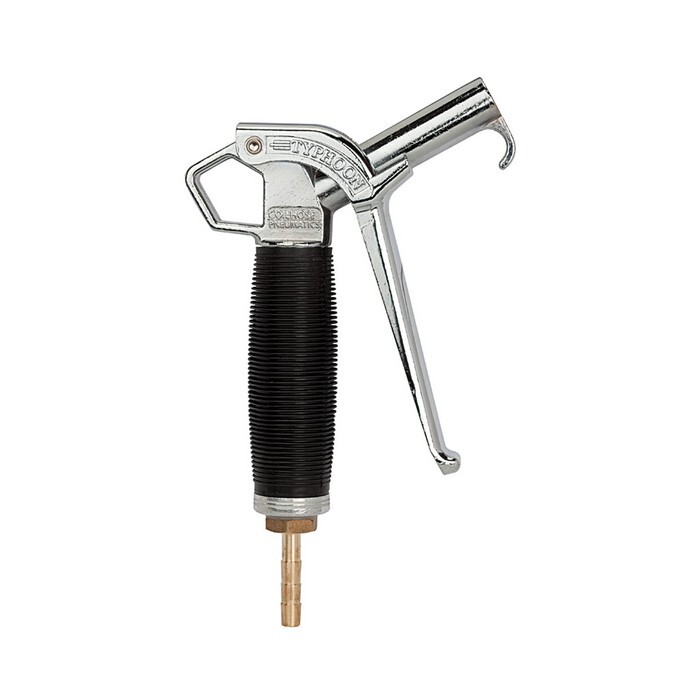

High performance air gun »Typhoon«, without nozzle, Aluminium, Operating temp. -10 °C to 50 °C, PN max. 10 bar, Sleeve I. D. 9Steplessly adjustable, lightweight and ergonomically optimised high-volume blow gun with exceptionally high blowing power. The »Typhoon« model, which achieves approximately three times the blowing power of conventional guns, rests comfortably and securely in the hand even when full pressure is applied. Extension tubes can be supplied for blowing out inaccessible points. In combination with safety nozzles, this blow gun meets a wide range of safety requirements.
Attributes
Connection thread
G 1/4
Connection type
Grommet LW 9
Hand lever
Die-cast aluminium
Material
Aluminium
Max. operating pressure
10 bar
Nozzle
1/2" - 27 UNS
Nozzle type
Without nozzle
Riegler article number
114443
