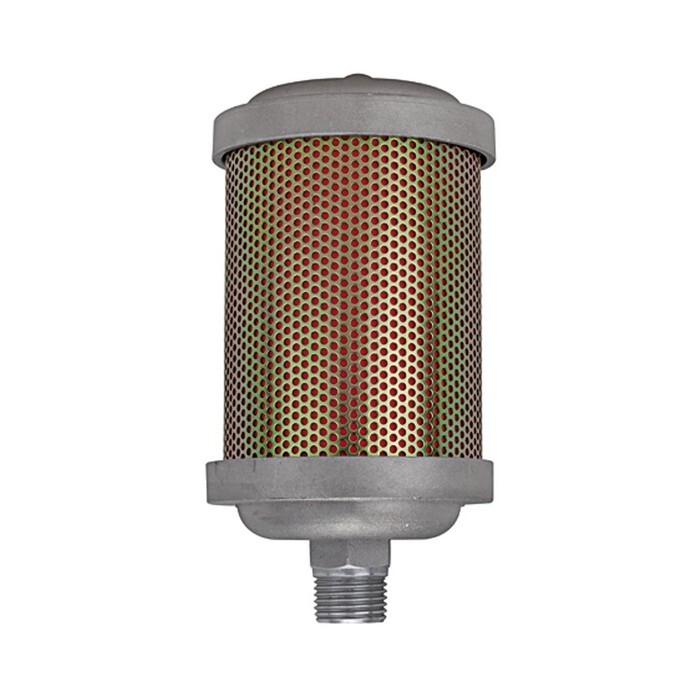

High-performance silencer
AG 1.1/2", 0-10 bar, max 150°C Aluminium and perforated sheetItem-no.: 1168655Supplier number: LX 15EAN: 4047322268714
Quantity:
1 PiecePackable
Item available in 9 variants:
Price and stock visible after login
Description
High performance silencer, Aluminium, G 1 1/2, Working pressure 0 - 10 bar, Operating temperature -10 °C to 70 °C.
Attributes
Flow rate at 6 bar
58900 l/min
Housing
Aluminium
L
340 mm
Material
Perforated sheet steel galvanised
Noise reduction
≥ 20 dB
Operating temperature max.
70 °C
Operating temperature min.
-10 °C
Riegler article number
113311
Screw thread
G 1 1/2
Steaming material
Cotton cloth inlay
Working pressure max.
10 bar
Working pressure min.
0 bar
h
133,5 mm
