High temperature adhesive on MS-Polym.

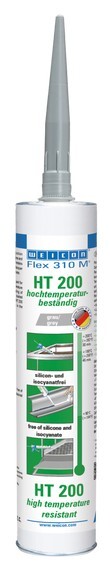

310 ml cartridge, grey silicone-free Weicon Flex 310 M HT-200Item-no.: 1123565Supplier number: 10031149EAN: 4024596030636
PU (Packaging): 12 STKQuantity:
1 STKPackable
Description
The high temperature resistance makes it possible to bond and seal components, which will be thermal-coated (powder-coated) afterwards. WEICON Flex 310 M HT 200 can be used in metal construction, tank and apparatus engineering, in ventilation and air conditioning systems, carriage, container, wagon and vehicle construction. WEICON Flex 310 M HT 200 Adhesive and Sealant is resistant even to high temperatues, has an outstanding resistance to ageing and is free of silicone, isocyanate, halogens and solvents.
Attributes
Aluminium sandblasted
1,8 N/mm²
Base
1 K.-MS Polymer
Colour
grey
Composition
pasty
Construction material class|DIN 4102
B 2
Density|(+20°C) DIN 51757
1,41 g/cm³
Elongation at break (tensile)|DIN EN ISO 527 / 5A
400 %
Hardening method
moisture-curing
Hardness (Shore A)|DIN ISO 7619
55±5
Hardness condition
+5 °C to +40 °C and 30 % to 95 % relative humidity
Processing temperature
+5 °C to +40 °C °C
Sales bundle
Cartridge
Skin forming time
10 Min.
Stability/run-off | ASTM D 2202
<1 mm
Tear resistance|DIN ISO 34
21.0 N/mm
Temperature resistance
-40 °C to +90 °C (45 min. +180 °C / 30 min. +200 °C)
Tensile strength|DIN EN ISO 527 / 5A
3.2 N/mm²
Tg after curing at RT
~ -59 °C
Through resistance
3,4 x 10¹¹ Ω·m
Through-hardening speed|in the first 24 hours
2 - 3 mm
Volume change|DIN EN ISO 10563
< 3 %
