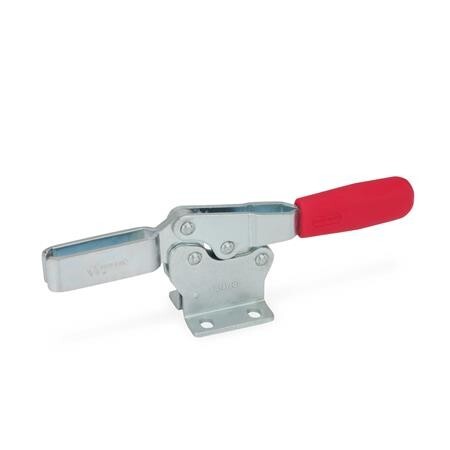

Horizontal clamp foot horizontal

GN 820-230-M Clamping arm open

C 10 - Case-hardening steel C 10

Item-no.: 1130661Supplier number: 820-230-MEAN: 4045525385573

Quantity:  1 PiecePackable

Item available in 17 variants:

Horizontal clamp foot horizontal GN 820-230-M Clamping arm open

Horizontal clamp foot horizontal GN 820-355-O Solid clamping arm

Horizontal clamp foot horizontal GN 820-25-M Clamping arm open

Horizontal clamp foot horizontal GN 820-75-M Clamping arm open

Horizintal clamp with pressure screw GN 820-230-MC

Horizintal clamp with pressure screw GN 820-355-MC

Horizontal clamp foot horizontal GN 820-130-M Clamping arm open

Horizontal clamp foot horizontal GN 820-230-M Clamping arm open

Horizontal clamp foot horizontal GN 820-355-M Clamping arm open

Horizontal clamp foot horizontal GN 820-75-O Solid clamping arm

Horizintal clamp with pressure screw GN 820-75-MC

Horizontal clamp foot horizontal GN 820-130-O Solid clamping arm

Horizontal clamp with pressure screw GN 820-25-MC

Horizintal clamp with pressure screw GN 820-130-MC

Horizontal clamp foot horizontal GN 820-230-O Solid clamping arm

Horizintal clamp with pressure screw GN 820-455-MC

Horizontal clamp foot horizontal GN 820-455-M Clamping arm open

Horizontal clamp foot horizontal GN 820-455-O Solid clamping arm

Description

Toggle clamps GN 820 work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. Toggle clamps in the U-bar version with two flanged washers (type M) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type MC. Toggle clamps in the type O version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
