DE Technisches datenblatt 30542150 WEICONLOCK® AN 305-42 Hydraulik- und Pneumatikdichtungcnco_de_tds_30542150_weiconlock_an_305-42_hydraulik-_und_pneumatikdichtung.pdf
230.96 kB
Hydraulik- & Pneumatikdichtung

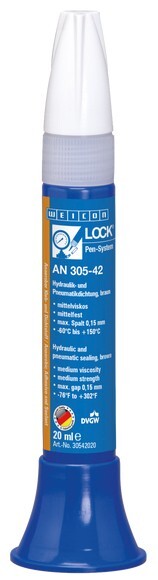

20 ml Pen, mittelfest, mittelviskos Weicon AN 305-42, DVGW-ZulassungItem-no.: 1123198Supplier number: 10016437EAN: 4024596019655
PU (Packaging): 20 STKQuantity:
1 STKPackable
Item available in 2 variants:
Description
· medium viscosity · medium strength · disassembly with normal tools
Attributes
Breaking torque
12 - 15 Nm
Colour
brown
Construction material class|DIN 4102
B2
End hardness|(100 % of strength)
2-4 Hours
For thread connection up to
M 20 R ¾\u201C
Further torque
18 - 22 Nm
Gap bridging up to max.
0,15 mm
Hand strength
10 - 20 Min.
Sales bundle
Plastic bottle
Shear strength Nmm² (DIN 54452)
8 - 12 N/mm²
Temperature resistance
-60°C to +150°C
Viscosity
500 nt mPa·s
Downloads
