Mitre saw GCM 12 GDL
Bosch 0.601.B23.600Item-no.: 1269975Supplier number: 0601B23600EAN: 3165140584890
Quantity:
1 STKPackable
Description

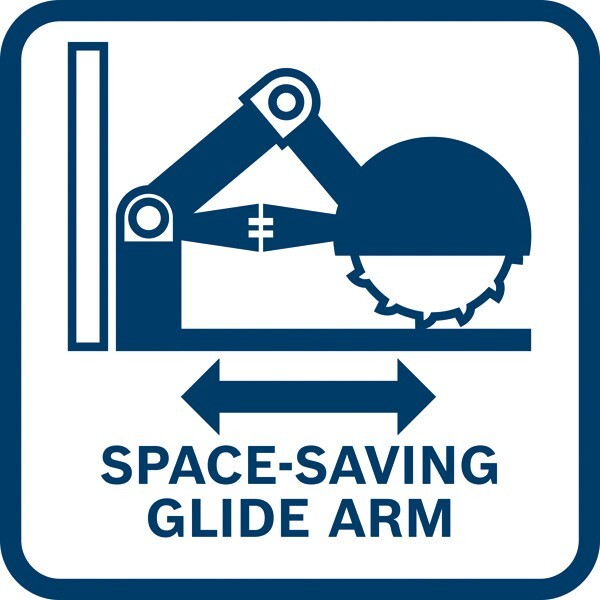

Mitre Saw GCM 12 GDL, With the most accurate cutting results in the Bosch range, the GCM 12 GDL Professional is the top choice for jobs that demand highest precision. The mitre saw´s innovative, maintenance-free glide arm is extremely robust and offers high endurance. Thanks to the glide arm´s hinge design, the GCM 12 GDL Professional is compact from front to back. Equipped with a double line laser and top-quality saw blade, this mitre saw ensures highly accurate cuts reaching a cutting depth of up to 170 x140mm for L-profile (max thickness should be 36mm). The GCM 12 GDL Professional is intended for cross, mitre bevel and groove cuts in wood, timber beams, and wood composites as well as in board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands. The GCM 12 GDL Professional also includes features such as intelligent brake system, precision double line laser, and soft start. Collet (spare part number 1 609 B02 585), Insert plate (spare part number 1 609 B02 375), 1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72 (2 608 642 531), Clamp (1 609 B06 203), Screw (1 609 B00 263), Stop plate (1 609 B02 365), Hex key (spare part number 1 609 B00 256)
Attributes
Cutting capacity 0°
104 x 341 mm
Cutting capacity 45° inclination
51 x 341 mm
Cutting capacity 45° mitre
104 x 240 mm
Cutting capacity at 0°, height
104 mm
Cutting capacity at 0°, width
341 mm
Cutting capacity at 45° inclination, height
51 mm
Cutting capacity at 45° inclination, width
341 mm
Cutting capacity at 45° mitre, height
104 mm
Cutting capacity at 45° mitre, width
240 mm
Idle speed
4000 min-1
Inclination adjustment
47 ° / 47 °
Inclination adjustment, left
47 °
Inclination adjustment, right
47 °
Leerlaufdrehzahl, von
4000 min-1
Measurement uncertainty k (sawing wood)
1.5 m/s²
Mitre adjustment
52 ° / 60 °
Mitre adjustment, left
52 °
Mitre adjustment, right
60 °
Nominal input power
2000 W
Saw blade bore diameter
30 mm
Saw blade diameter
305 mm
Tool dimensions (width x length x height)
670 x1100 x740 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
635 x 790 x 565 mm
Vibration emission value ah [Sawing wood]
2.5 m/s²
Voltage
230 V
Voltage, up to
230 V
Weight
32.1 kg
Werkzeugabmessungen (Länge)
1100 mm
